#31

21-02-15, 22:41

Peter Duggan Peter Duggan is offline

Registered User

Join Date: Apr 2011

Location: Cherry Valley, ON

Posts: 554

Mockup

Guys,

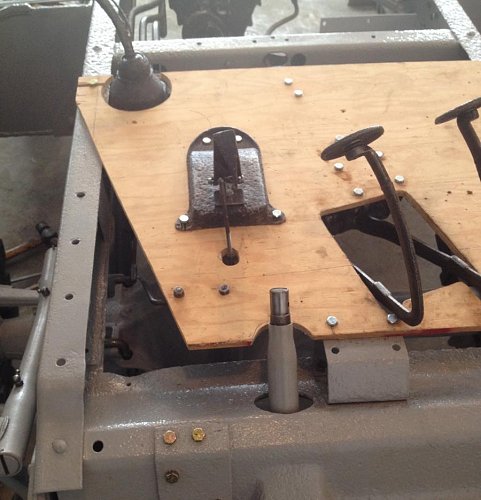

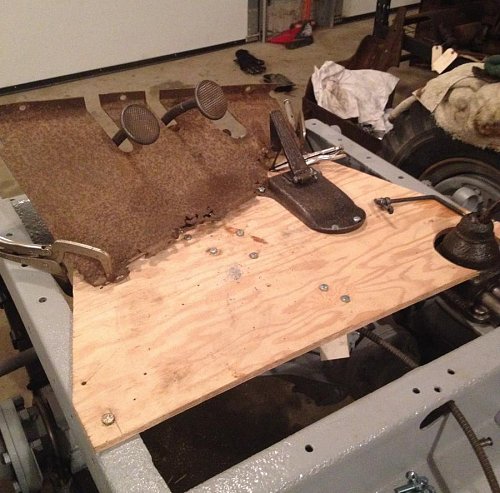

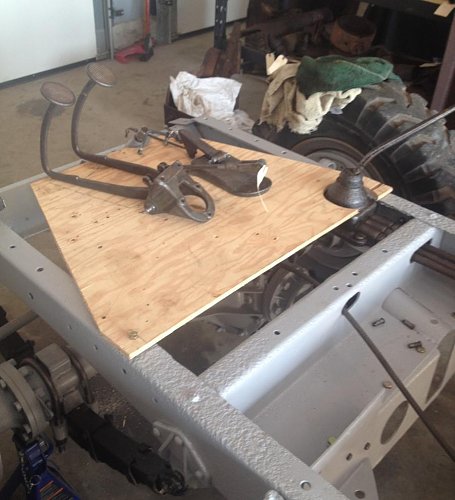

Due to the limited space in the drivers space (ergonomics was not the first priority with CMP designs) I used a chunk of plywood as a template of the front floor to dry fit some of the operators controls and see how all the bits and pieces that I've acquired/ salvaged/ had fabricated, fit together. Highlights what is missing, but still feels like progress.

Peter
