Default Ford Oil Conditioner elements

Hi Rick,

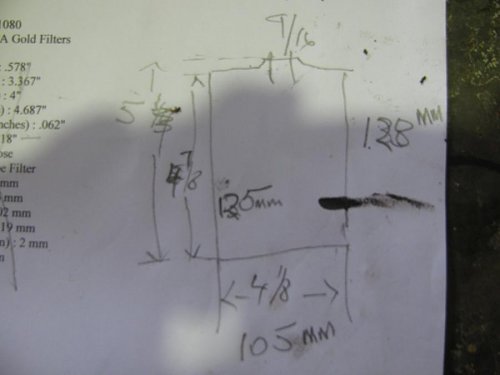

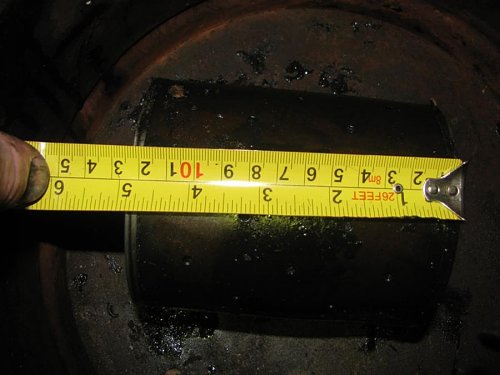

Just looking at the dimensions of the elements you were seeking and I found these two filter elements when I was chasing them up for my F-15A:

Fleetguard LF510 Length 4.87" Dia 3.97" Hole Dia 0.54"
NAPA1006 Length 5.00" Dia 4.094 " Hole Dia 0.553"
(WIX 51006) Length 5.007" Dia 4.094 " Hole Dia 0.553"

Fleetguard LF 510 are available in Dandenong at Whitehorse Truck Parts and the WIX 41006 are available from Brisbane at Australian Engines.

I bought a WiX 51001 from Australian Engines which has a 5.50" length which matched the original element from my F-15A

I recall a local company in Melbourne that had WIX 51006 elements but I had to get the 51001 from Brisbane. A google search should find the local Melbourne agent for WIX filters.

May have posted this photo before but if not here it is for comparison.

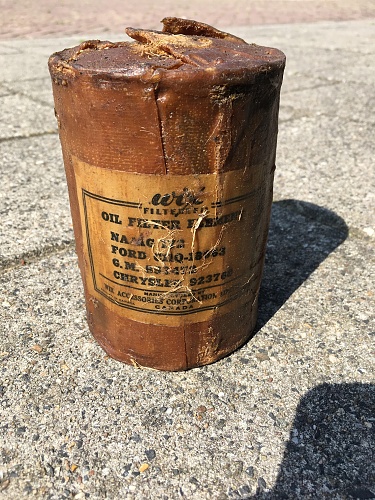

Original F15A- Left, WIX51001- middle and Fleetguard LF 510- right

Hope this is of some help and interest.

Still have the Fleetguard LF510 if anyone wants it.

Cheers,
Attached Images
File Type: jpg IMG_4339.JPG (402.2 KB, 2 views)
__________________
F15-A 1942 Battery Staff

Jacques Reed
