31-05-16, 12:41

Petr Brezina Petr Brezina is offline

Registered User

Join Date: Mar 2014

Location: Czech Republic

Posts: 549

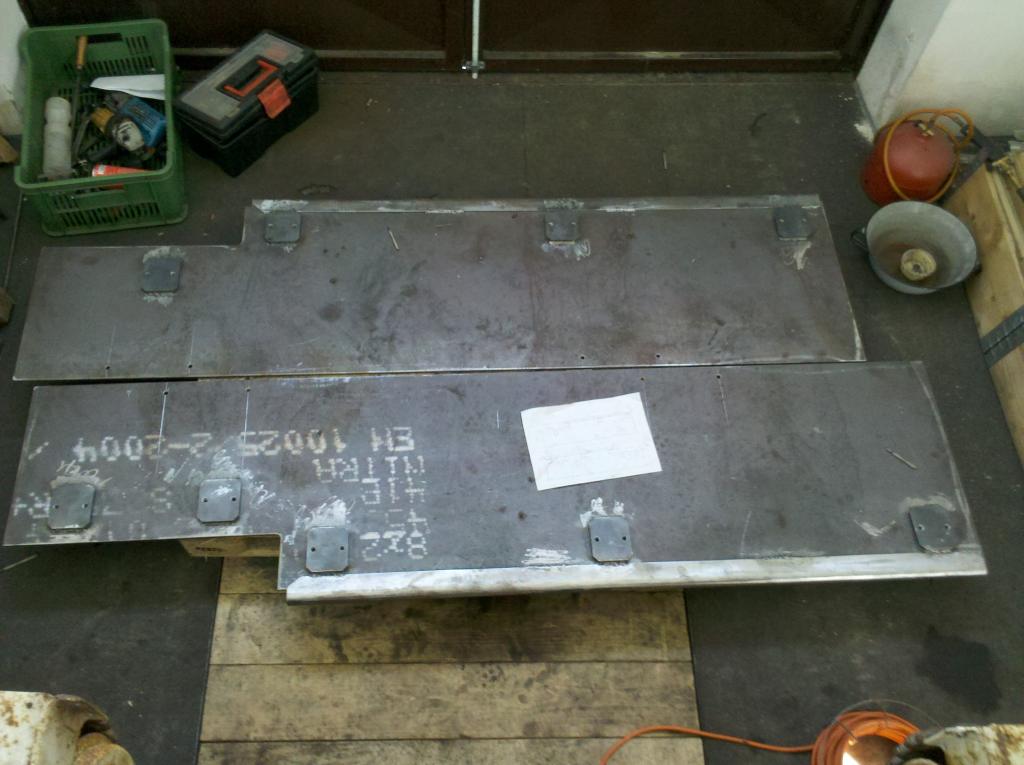

I have made rough sketch of the upper plate above the division plate. Its been made just from the photos, so its not definitely accurate.
May I kindly ask anyone with Mk.II to measure basic dimensions for me? They are marked with letters on the sketch. Or possibly I overlooked some important detals, so detailed pics would be also great help. I will redraw it then and happily share with you.
Thanks in advance!

Attached Files

upper_plate.pdf (21.9 KB, 22 views)
