#91
|
||||
|
||||
![]()
Shaun, I have finished the cover and re-furbished yours, The original cover is basically three pieces of metal, The main contoured part is pressed out on a machine, the protruding flap arrangement is welded on as is a small piece of metal on the inside of the handbrake cutout.
If you are going to make this you need an original in your hand to copy. The cover is held in place by four bolts, one of those bolts also attaches through one hole for fixing down the brake pivot triangle floor bracket, hence a counter sunk 3/8" goes through. I have rounded over the protruding flap since taking the pictures I can see why so many carriers dont feature this cover as to remove and replace it, you need to have two men one to stop the bolts turning as you tighten the nuts under the carrier. I will bring yours back over next week once the grenade wooden holders are finished. thanks for the loan, kevin.
__________________
2pdr Tank Hunter Universal Carrier 1942 registered 11/11/2008. 3" Mortar Universal Carrier 1943 registered 06/06/2009. 1941 Standard Mk1 stowage Carrier, Caunter camo. 1941 Standard Mk1 stowage Carrier, light stone. 10 cwt wartime mortar trailer. 1943 Mk2 Daimler Dingo. 1943 Willys MB. 1936 Vickers MG carrier No1 Mk1 CMM 985. |
#92
|
||||
|
||||
![]()
so when does the reproduction run start Kevin
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration). |
#93
|
||||
|
||||
![]()
Rich, As soon as you borrow the cover off Shaun!,
Love to make more but got just to much else to do on the mortar carrier. Kev.
__________________
2pdr Tank Hunter Universal Carrier 1942 registered 11/11/2008. 3" Mortar Universal Carrier 1943 registered 06/06/2009. 1941 Standard Mk1 stowage Carrier, Caunter camo. 1941 Standard Mk1 stowage Carrier, light stone. 10 cwt wartime mortar trailer. 1943 Mk2 Daimler Dingo. 1943 Willys MB. 1936 Vickers MG carrier No1 Mk1 CMM 985. |
#94
|
|||
|
|||
![]()
Kevin, nice job on the cover. I think there is a que forming to borrow it. did not realize how rare they were.
Anyway i dropped the hull off at the blasters yesterday, it was a tad on the wet side so i hope its dry when i get it back next week. Here are a couple of photos of it looking all loanly awaiting blasting.
__________________
Shaun Hindle Morris C8 Ford GPW jeep 1945 Morris 1000 (ex mil) SAS LSV Harley Davidson MT 350 motor cycle Universal carrier MK 1*1943 Ronson (under restoration) Universal carrier MK 2* 1944 (Puddle Jumper HSK 345) Ferret MK 1/1 1956 Ferret MK 2/4 1958 CVR(T) Scorpion 432 MK2 Daimler MK1 armoured car 1943 (winner best wheeled armour W&P show 2011) Daimler Dingo MK2 1944 (awaiting restoration, aquired 11/12/2011) Fordson WOT 3 D 1940 (awaiting restoration ) |
#95
|
|||
|
|||
![]()
that's a nice bit of fabrication there kevin, i was just trying to figure out how i could do it with a sheet metal folder but it would probably end up looking like a dogs hind leg but then again it would go well with the rest of my carrier
![]() eddy
__________________
_______________________ 1941 mk1 mortar Carrier 1941 Mk1* Carrier 1942 Mk1* Carrier 1943 T16 Carrier 1945 Mk3 Dingo 1941 Mk3 Covenanter 1941 Mk4 Churchill AVRE (now sold) 1944 Mk6 Cromwell (now sold) 1952 Mk3 Centurion 1952 ARV Centurion 1952 ARV Centurion 1953 Mk3 Centurion (breaking) |
#96
|
|||
|
|||
![]()
Picked up the carrier hull from the blasters, next is to cut out the metal moth and make good. only 200 rivets to do !!!!
__________________
Shaun Hindle Morris C8 Ford GPW jeep 1945 Morris 1000 (ex mil) SAS LSV Harley Davidson MT 350 motor cycle Universal carrier MK 1*1943 Ronson (under restoration) Universal carrier MK 2* 1944 (Puddle Jumper HSK 345) Ferret MK 1/1 1956 Ferret MK 2/4 1958 CVR(T) Scorpion 432 MK2 Daimler MK1 armoured car 1943 (winner best wheeled armour W&P show 2011) Daimler Dingo MK2 1944 (awaiting restoration, aquired 11/12/2011) Fordson WOT 3 D 1940 (awaiting restoration ) |
#97
|
||||
|
||||
![]()
I has been a busy bee when it comes to rivetting PM me your mobile and i will send you a cheeky pic....I has a cunning plan that may save you a lot of time !
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration). |
#98
|
||||
|
||||
![]() Quote:
Cheers,
__________________
Marc van Aalderen Daimler Dingo Mk1B 1941 Daimler Armoured Car Mk1 1943 Daimler Ferret Mk1/1 1959 Ford Universal Carrier No2 MkII* 1944 Ford GPW British Airborne 1944 Lightweight 10 Cwt Trailer SS Cars Ltd 1944 Anti-Tank Gun 6 Pdr 7 Cwt MkII 1942 Daf Trailer YAA602 1954 Daf Trailer AT16-24-1NL 1977 Daf 2100Turbo 1982 |
#99
|
|||
|
|||
![]()
I second that!
__________________
Bluebell Carrier Armoured O.P. No1 Mk3 W. T84991 Carrier Bren No2.Mk.I. NewZealand Railways. NZR.6. Dodge WC55. 37mm Gun Motor Carriage M6 Jeep Mb #135668 So many questions.... |
#100
|
|||
|
|||
![]() Quote:
i do like your thinking though, veery tidy job ( i bet thats got the rest of you guys pondering - its up to Richie to blow the cover on his machining)
__________________
Shaun Hindle Morris C8 Ford GPW jeep 1945 Morris 1000 (ex mil) SAS LSV Harley Davidson MT 350 motor cycle Universal carrier MK 1*1943 Ronson (under restoration) Universal carrier MK 2* 1944 (Puddle Jumper HSK 345) Ferret MK 1/1 1956 Ferret MK 2/4 1958 CVR(T) Scorpion 432 MK2 Daimler MK1 armoured car 1943 (winner best wheeled armour W&P show 2011) Daimler Dingo MK2 1944 (awaiting restoration, aquired 11/12/2011) Fordson WOT 3 D 1940 (awaiting restoration ) |
#101
|
||||
|
||||
![]()
I discussed this with Kevin last year but the prep work was labour intensive i have made a jig to go into a lathe so can turn them out by the bucket load now. I failed miserably to form the heads on the rivets on the outside of the hull correctly (truss head) so decided it was a toss up between countersink and rivet frenzy or some machine work.
will get some pics tomorrow and post them up.
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration). |
#102
|
|||
|
|||
![]()
i was going to use coach bolts to put my radiator armour back on, they look identical to rivets, infact if you were picky you could bash the bolt head to give it the abused rivet look. the big advantage is of course nuts and bolts are easy and can be removed and refitted as many times as you like, there's also the cost to consider as 200 coach bolts will cost you about £50. the down side is you will be able to see the nuts on the inside but don't worry if you're at a show and someone starts to critisize your nuts just knock 'em out, put 'em in the drivers seat with a tin hat on and say it's part of your display
![]() eddy
__________________
_______________________ 1941 mk1 mortar Carrier 1941 Mk1* Carrier 1942 Mk1* Carrier 1943 T16 Carrier 1945 Mk3 Dingo 1941 Mk3 Covenanter 1941 Mk4 Churchill AVRE (now sold) 1944 Mk6 Cromwell (now sold) 1952 Mk3 Centurion 1952 ARV Centurion 1952 ARV Centurion 1953 Mk3 Centurion (breaking) |
#103
|
||||
|
||||

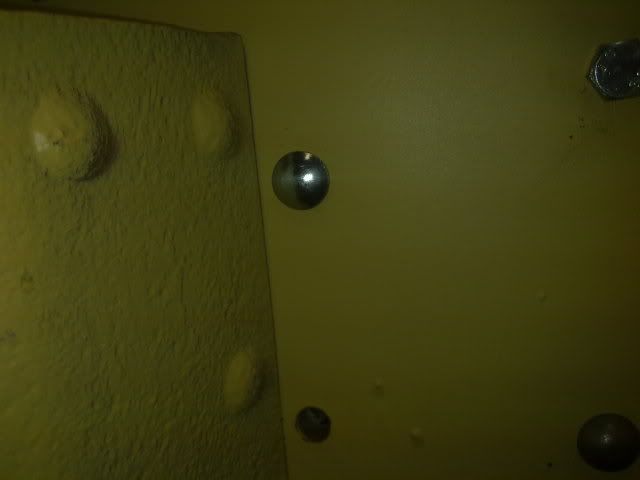

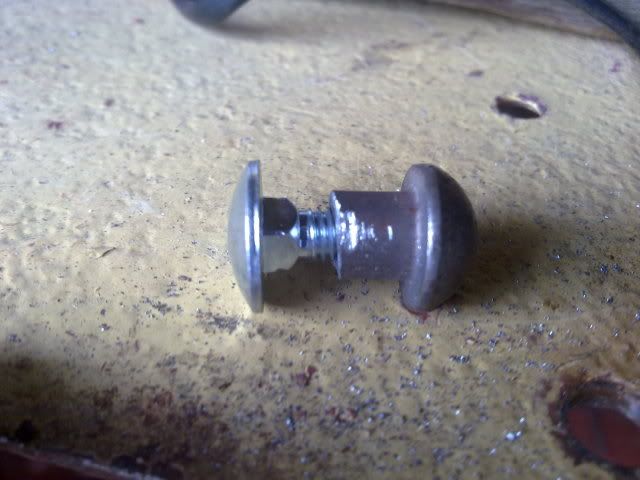

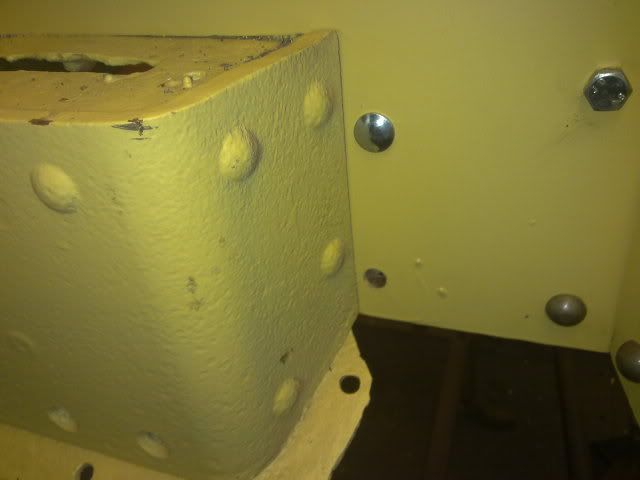

![]() ![]() ![]() ![]() ![]() please excuse my first crude attempt to see if the theory would work.... the idea is i will weld up the inside of my armour where the plates meet...the sections hidden by the angle bar.... then for the frame rails i will drill and plug weld the plates to the frame rails....the fake rivets with some locktite added will be wound on and should give the correct appearence. but majority of strength taken up by the welds... i have done a crude load test with the rivet under tension and i could hang a road wheel from it without it pulling. i took a rivet out of the original armour and the closest coach bolt (18mm head) was the standard M6 i had tried the M8's but the head was slightly too big and the shank size did not leave enough material on the rivet to thread. some will probably say LOTS OF WORK THAT ! and they would be correct but... using a pillar drill i drilled and tapped 3 rivets in 15 mins. on a lathe with a jig i can center the rivet easier and will be able to produce them much quicker. for those who may not brave hot rivetting.....i tried and failed.... this may be an option sorry if i have hijacked the thread Shaun...i suppose its kinda relevant to where you are with your build.
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration). Last edited by RichardT10829; 02-02-11 at 23:24. |
#104
|
||||
|
||||
![]()
Richard, When i did mine it wasnt a big enough challange and wanted to punish myself further, you have used coach bolts there, try getting a 5/16" truss head rivet and putting a thread on it aswell like i did, then make 100 more of them aswell as drilling and tapping out the 3/8" round head rivet like you have then you will wish you could master the rivet gun.
Its o.k. and looks fine with a bit of bashing over at the end but boy what a boring job it was doing 100. You will need therapy at the end of it, if i did it again i would gear myself up for riveting, its also the correct way of doing it. kev.
__________________
2pdr Tank Hunter Universal Carrier 1942 registered 11/11/2008. 3" Mortar Universal Carrier 1943 registered 06/06/2009. 1941 Standard Mk1 stowage Carrier, Caunter camo. 1941 Standard Mk1 stowage Carrier, light stone. 10 cwt wartime mortar trailer. 1943 Mk2 Daimler Dingo. 1943 Willys MB. 1936 Vickers MG carrier No1 Mk1 CMM 985. |
#105
|
||||
|
||||
![]()
yup your right there kev I have the forge and snaps but getting the heads correct is an artform and a lost art at that one mistake and your drilling out rivets no second chances. You are right it is boring but i am spurred on at the moment to get my carrier finished before summer time.
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration). |
#106
|
|||
|
|||
![]()
They look great but i dont think its going to cost more than about £500 quid to get my rivets done. I did speak to an old mate not far from home who use to a lot for the local steam museum, he said i coul borrow his riveting kit but this guy Ben has found knows the process very well. i would rather spend half a day trailering my hull to him than 5 days going deaf. I will of course post the results on here once i have had the riveting done. Richie you need to pray for more snow so you can get stuck in the workshop behind the lathe ha ha ha
__________________
Shaun Hindle Morris C8 Ford GPW jeep 1945 Morris 1000 (ex mil) SAS LSV Harley Davidson MT 350 motor cycle Universal carrier MK 1*1943 Ronson (under restoration) Universal carrier MK 2* 1944 (Puddle Jumper HSK 345) Ferret MK 1/1 1956 Ferret MK 2/4 1958 CVR(T) Scorpion 432 MK2 Daimler MK1 armoured car 1943 (winner best wheeled armour W&P show 2011) Daimler Dingo MK2 1944 (awaiting restoration, aquired 11/12/2011) Fordson WOT 3 D 1940 (awaiting restoration ) |
#107
|
|||
|
|||
![]()
I've done quite a few hot rivets from 3/8" up to 3/4" dia. and it's not hard. There is a fairly steep learning curve but I would not consider doing it any other way now.
__________________
Adrian Barrell |
#108
|
||||
|
||||
![]()
hop in yer car and mosey up north then buddy
![]()
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration). |
#109
|
|||
|
|||
![]()
if you want to use rivets but are a bit wary of doing it hot, how about cold riveting with copper rivets, it would give you as long as like to fiddle about with them, personally i'm going to stick with the coach bolts but some might like the more original approach.
eddy
__________________
_______________________ 1941 mk1 mortar Carrier 1941 Mk1* Carrier 1942 Mk1* Carrier 1943 T16 Carrier 1945 Mk3 Dingo 1941 Mk3 Covenanter 1941 Mk4 Churchill AVRE (now sold) 1944 Mk6 Cromwell (now sold) 1952 Mk3 Centurion 1952 ARV Centurion 1952 ARV Centurion 1953 Mk3 Centurion (breaking) |
#110
|
||||
|
||||
![]()
i think if copper rivets were used alone they may sheer with the vibrations...same with aluminium i would guess. mind i bet they would be easier to peen over
![]()
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration). |
#111
|
||||
|
||||
![]()
I used coach bolts and nuts on the inside. Once all the stuff (bins) are mounted inside the veh you really can't see that many nuts. Much easier to do and if I ever I get some original side plates I can then simply unbolt.
__________________
Jordan Baker RHLI Museum, Otter LRC C15A-Wire3, 1944 Willys MB, 1942 10cwt Canadian trailer |
#112
|
|||
|
|||
![]()
At last the hull is in the workshop, i have my cutting list for all the angle irons and repair patches for the hull plates, i have been a real rivet counter today and i need 230 rivets replacing. i think in 6 weeks the hull will be back to a sound unit ready to start the rebuild.
Im going for the real rivets, Graeme says its only a days work for his team to do that amount.
__________________
Shaun Hindle Morris C8 Ford GPW jeep 1945 Morris 1000 (ex mil) SAS LSV Harley Davidson MT 350 motor cycle Universal carrier MK 1*1943 Ronson (under restoration) Universal carrier MK 2* 1944 (Puddle Jumper HSK 345) Ferret MK 1/1 1956 Ferret MK 2/4 1958 CVR(T) Scorpion 432 MK2 Daimler MK1 armoured car 1943 (winner best wheeled armour W&P show 2011) Daimler Dingo MK2 1944 (awaiting restoration, aquired 11/12/2011) Fordson WOT 3 D 1940 (awaiting restoration ) |
#113
|
|||
|
|||
![]()
anybody ever seen this cover behind the drivers seat , There was one in my carrier too .
|
#114
|
||||
|
||||
![]()
I think i recall seeing this on Martyns Mk2...or may have been his Mk1 ? it was during his build when he did two carriers together. mine is missing but to be fair i couldnt see any evidence of it being there in the first instance.
that carrier looks in a sorry state mind Maurice ![]()
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration). |
#115
|
|||
|
|||
![]()
i have seen a few on both British and Canadian carriers, but never on MK2's . i may still have a pattern or copy about. There was not one on this carrier i am now doing, which surprised me so i wonder if they stopped fitting them in production.
__________________
Shaun Hindle Morris C8 Ford GPW jeep 1945 Morris 1000 (ex mil) SAS LSV Harley Davidson MT 350 motor cycle Universal carrier MK 1*1943 Ronson (under restoration) Universal carrier MK 2* 1944 (Puddle Jumper HSK 345) Ferret MK 1/1 1956 Ferret MK 2/4 1958 CVR(T) Scorpion 432 MK2 Daimler MK1 armoured car 1943 (winner best wheeled armour W&P show 2011) Daimler Dingo MK2 1944 (awaiting restoration, aquired 11/12/2011) Fordson WOT 3 D 1940 (awaiting restoration ) |
#116
|
|||
|
|||
![]()
the picture is taken in a MKI , and in mine is also a MKI, it is held in place by 2 bolts wich also hold the bottom stearing bearing place to the hull.
|
#117
|
||||
|
||||
![]()
You may be on to something there Shaun looking at the design of the peice i reckon it would be a nightmare for retaining water within the cam plate area where as without it a tap on the brakes would make the water run into the footwell i guess.
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration). |
#118
|
|||
|
|||
![]()
But every piece of equipment wich rolls to the cam area will block the steering , like emty shells the odd tool etc. From the other side it is coverred up as well , so not easy to free cam once blocked.
|
#119
|
||||
|
||||
![]()
Hi, I think this cover arrangement was fitted latter on to the mk2's, this is Malcolms very original carrier, with the canvas part of that cover still in place. Hi, Maurice have you the linkage cover yet?.
kevin
__________________
2pdr Tank Hunter Universal Carrier 1942 registered 11/11/2008. 3" Mortar Universal Carrier 1943 registered 06/06/2009. 1941 Standard Mk1 stowage Carrier, Caunter camo. 1941 Standard Mk1 stowage Carrier, light stone. 10 cwt wartime mortar trailer. 1943 Mk2 Daimler Dingo. 1943 Willys MB. 1936 Vickers MG carrier No1 Mk1 CMM 985. |
#120
|
|||
|
|||
![]()
My MkIII had the remains of one, just like the one in your photo.
I'd suggest it is important to maintain steering. As stated, any bullet shell or stone etc could get in and jamb things up.
