#1
16-06-22, 02:26
|
||||
|
||||
Progress report : Truck is running . Drives at 40 MPH all day long . I can now start it with the cranking handle . All new windows installed . Needs two CMP seat cushions for the operator’s seats ( 2) . Next : Install control panel for the generators .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#2
16-06-22, 02:31
|
||||
|
||||
|
New windows all around . New copper wire bug screens made and installed on one side . It’s coming along quite well .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#3
16-06-22, 13:34
|
|||
|
|||
|
Great work.
__________________
Fingers Old Junee NSW Australia 1944 C60L ARN 89131
|
|
#4
17-06-22, 00:49
|
||||
|
||||
|
Thank you Richard from down under ! Found some parts today that should help me finish the job !
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#5
17-06-22, 17:21
|
||||
|
||||
|
Bus bars
Here are my newly found bus bars . I personnaly took them out of a power transformer being dismantled for scrap and recycling . The weight is 8 lbs of pure copper . ... They will be incorporated in the generator / battery set up in the radio box . They are resting on a church pew that i salvaged from a church being torn down . Recycling before it was in fashion .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#6
17-06-22, 18:10
|
||||
|
||||
|
Bus bar for the box . in the Wire-5 electrical setup everything ground or neg is connected to one busbar that in turn is connected to the frame of the truck . Radio , batteries , generators .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#7
12-12-22, 00:51
|
||||
|
||||
|

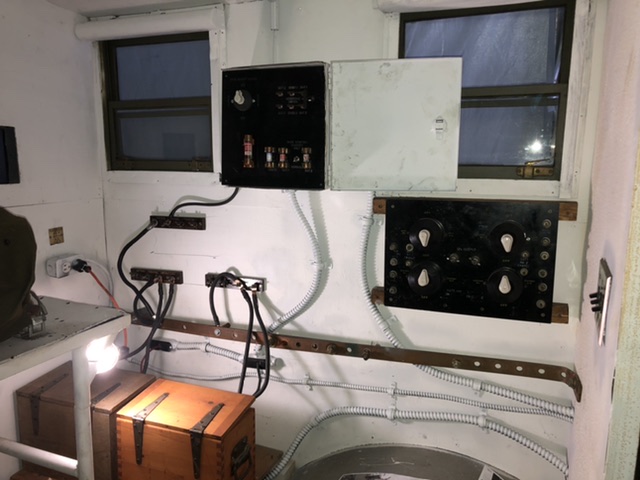

Electrical control panel
I have started doing the inside of the box .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
 |
