Default info needed: No. 2 Mk. II* wiring diagram

Thank you to another MLU member for an electronic version of Chilwell.

If someone has the No. 2 Mk. II* version, from the Canadian Ford user manual, could they please post it or otherwise contact me?
Attached Thumbnails
Illustrations L002.jpg

Last edited by Michael R.; 01-08-12 at 14:28.
Reply With Quote
  #2
Old 03-08-12, 20:01
Marc van Aalderen's Avatar
Marc van Aalderen Marc van Aalderen is offline
Registered User

Join Date: May 2009
Location: Veenendaal, The Netherlands
Posts: 481
Default Fuc03

Hi Michael,

Please check your FUC03, 1944. Illustration no. 61 on page 353 shows the wiring diagram for the MkII*.

Cheers,
__________________
Marc van Aalderen

Daimler Dingo Mk1B 1941
Daimler Armoured Car Mk1 1943
Daimler Ferret Mk1/1 1959
Ford Universal Carrier No2 MkII* 1944
Ford GPW British Airborne 1944
Lightweight 10 Cwt Trailer SS Cars Ltd 1944
Anti-Tank Gun 6 Pdr 7 Cwt MkII 1942
Daf Trailer YAA602 1954
Daf Trailer AT16-24-1NL 1977
Daf 2100Turbo 1982
Reply With Quote
  #3
Old 04-08-12, 00:41
Michael R. Michael R. is offline
Registered User

Join Date: Jun 2011
Location: Canada
Posts: 1,164
Default Diagram/Schematic

Thank-you Marc: I am having difficulty finding a document similar to Figure 21 on page R-13 of UC-F1.

The differences of the Mk. II* over the Mk. I* in the electrical area account for:
the lack of a starter button,
two fuel tank sending units for the fuel gauge,
one headlamp,
two forward clearance lamps.

The correct fuze board, terminal board, switch board and gauge connections is what I wish to confirm when running the stock 6V positive ground with standard Mk. II* lighting.
Attached Thumbnails
R-13 Fig 21.jpg   Mk. II instrument panel.jpg

Last edited by Michael R.; 04-08-12 at 03:04.
Reply With Quote
  #4
Old 04-08-12, 10:12
stephen crowhurst stephen crowhurst is offline
Registered User

Join Date: Nov 2011
Location: Kent. England
Posts: 155
Default

Hello Michael

Is this any good.

Regards Stephen
Attached Thumbnails
Reply With Quote
  #5
Old 04-08-12, 16:06
Michael R. Michael R. is offline
Registered User

Join Date: Jun 2011
Location: Canada
Posts: 1,164
Default Perfect

Thank-you Stephen. Perfect !

Universal Carrier, Operator Manual, UC-OM1, of September, 1944. Page 80, Figure 70.
Attached Thumbnails

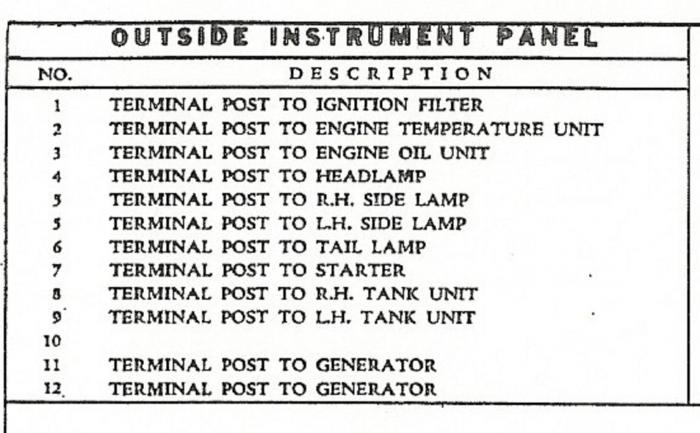

Wiring diagram Mk. II Canadian.jpg   Inside instrument panel.jpg   Outside instrument panel.jpg   Outside instrument panel 2.jpg

Last edited by Michael R.; 04-08-12 at 17:01.
Reply With Quote
