Cdn MK II * Radiator overflow tank

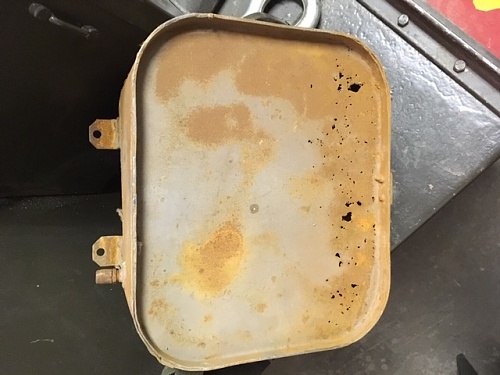

Hi folks . Got this rad overflow tank from a friend about 1 year
ago . I got it overhauled to new condition in a radiator shop. I am picking it up tomorrow . Prime and paint will follow . I will show the results . Q: How / where do you route the tubing to the radiator thermometer / pressure relief cap on top of the rad ? I can’t find the reference drawing for this can and tubing in the parts manual . I see some variation in the overflow department , some using 2 gal cans on the rear deck . How are MK I ‘s connected ?
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#2
22-04-20, 19:08
|
||||
|
||||
|
I just picked up the condenser can from the shop. Here is what it looks like now . Completely serviceable now . For those who have asked , i will take measurements this evening when i make it home to make it easier for you to reproduce it. Cheers .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#3
22-04-20, 21:13
|
||||
|
||||
|
OK guys , here we go . Bear with me , i am not tec minded . 300 mm wide ( i am not a seamstress ) .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis Last edited by Robert Bergeron; 22-04-20 at 21:39.
|
|
#4
22-04-20, 21:18
|
||||
|
||||
|
252 mm high
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#5
22-04-20, 21:21
|
||||
|
||||
|
130 mm deep. We see the top vent here .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#6
22-04-20, 21:29
|
||||
|
||||
|
5 inches exactly between the holes or 125 mm. Check the holes in your div plate to be sure they are the same as mine, i have a 1944 Cdn MKII * . The other bracket hole is in the middle of these . Part number for the «*tank assembly -overflow «* is C31UCW 8081 and you need 3 X 5/16 bolts to bolt it to the division plate. Best to remove the tool box at the bottom to access the lower center bracket / bolt . You will have to lift the gunner’s seat out of the way for the upper and lower bolts . Now to find 1/2*inch vacuum hose . All part numbers are on page 126 .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis Last edited by Robert Bergeron; 23-04-20 at 02:58.
|
|
#7
23-04-20, 15:23
|
|||
|
|||
|
Can someone post a picture of it mounted with the tubing attached? Thanks
|
|
#8
23-04-20, 19:56
|
||||
|
||||
|
This is what mine looks like at the top end . The bottom end is a mystery to me .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#9
23-04-20, 20:43
|
||||
|
||||
|
The condenser can part # 8081 as i just installed it under the passenger seat .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#10
23-04-20, 20:47
|
||||
|
||||
|
The can seen from further out . Notice the 1/2 inch rubber hose coming out the bottom ....
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#11
23-04-20, 20:53
|
||||
|
||||
|
I routed the rubber hose down along the radiator and under the division plate to finally connect it to the can elbow tightly fitted with a plumbing collar . Good fit and serviceable until i find an original connector . The floor tool box is in place with no interference with the hose . Now i can travel safely in the Sahara desert with no fear of losing precious coolant fluid or water .It was so much fun . Thanks Dave .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis Last edited by Robert Bergeron; 23-04-20 at 23:41.
|
|
#12
23-04-20, 21:32
|
||||
|
||||
|
My expansion can was just as bad as yours so I got a complete new one made from Stainless Steel as hopefully I'll never have to remove it again. I'll try and take a closer look tomorrow as I fancy that there is a copper pipe there???
Ron
|
|
#13
24-04-20, 00:55
|
||||
|
||||
|
Friends , from what i have seen in my Carrier : 1/2 inch Rubber hose from the spout out of the thermostat for about 12*inches or so . Then there is a small bracket and adapter / fitting . From the adapter connects a copper / steel tube about 3/8 inches diameter hard to say because it’s snuggled between the division wall , the radiator and the shroud . I saw the pipe go down quite a ways towards the bottom . it was cut off and spilling fluid on the floor in summer . So what i need to know now is : rubber hose or metal tubing to the condenser can from there ?
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
|
#14
24-04-20, 01:55
|
||||
|
||||
|
The parts manual states there is hose and pipe( tube assembly ) for the overflow system.
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis Last edited by Robert Bergeron; 24-04-20 at 02:21.
|
|
#15
24-04-20, 11:14
|
||||
|
||||
|
Robert, I've just been poking around in mine with a torch and flash camera.
In the corner of the radiator housing is a special brass elbow bolted to the division plate. Then a straight length of 5/16" copper pipe which bends round to meet the expansion can fitting (1/4 BSP). Ron
|
|
#16
24-04-20, 14:55
|
||||
|
||||
|
Thanks a lot Ron . Clear as mud now . While we are in that area of the Carrier , what is that bracket i circled used for other than holding the seat ? Why is there a hole drilled into it ?
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 / 44 U.C. No-2 MKII* / 10 Cwt Cdn Brantford Coach & Body trailer / 94 LSVW / 84 Iltis
|
 |
|
|
