#1
03-06-14, 11:24
|
||||
|
||||
Correct length water pump belts
Folks I have tried a number if belts or my ford mercury lump, all have either been too short or way too long, can anyone advise on the correct length belt or perhaps a part number ? I ran a cord around the pulleys, but the belt does not sit right done into the groove..
Just thought I would ask incase someone knows the specified length. Cheers Richie
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration).
|
|
#2
03-06-14, 12:34
|
|||
|
|||
|
Rich, Email me.
Bluebell.
__________________
Bluebell Carrier Armoured O.P. No1 Mk3 W. T84991 Carrier Bren No2.Mk.I. NewZealand Railways. NZR.6. Dodge WC55. 37mm Gun Motor Carriage M6 Jeep Mb #135668 So many questions....
|
|
#3
03-06-14, 12:39
|
||||
|
||||
|
Messaged you my details buddy
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration).
|
|
#4
04-06-14, 02:02
|
|||
|
|||
|
B52 belts . Are they the wide belt, i.e. 5/8 inch?
Have a look at .46 deep x .44 small width x 33 degree angle. (reference page P-12, UC-F1) (UC-OM1, page 3) The FUC-03 part number is 51-8620. If you look at Mac's you will find alternate part numbers 8620-21606 from the normal 49-18723-1 . Remember Richie is running a 239 engine. Last edited by Michael R.; 04-06-14 at 03:09.
|
|
#5
04-06-14, 08:09
|
||||
|
||||
|

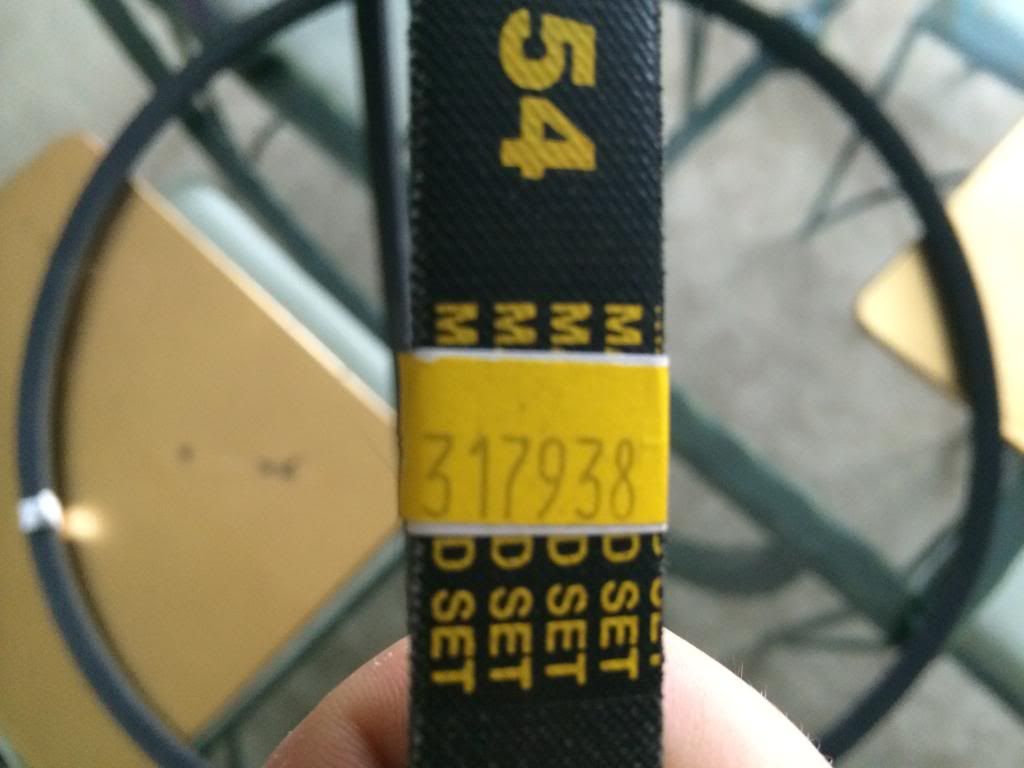

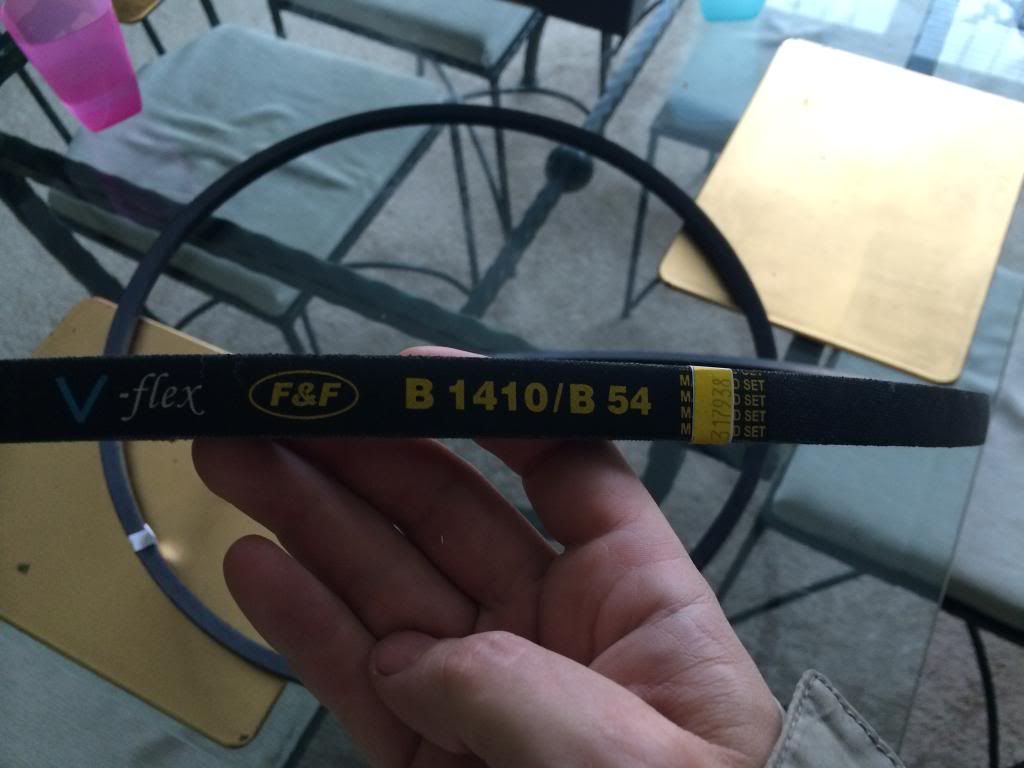

These are the last set I have had, but are too long, I think I have had B52 which I could not stretch over all four pulleys.
These fit into the pulleys perfectly.
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration).
|
 |
|
|
