thanks guys. I am sure I can push on now, however, one of the things that is worrying me the most is finding supplies of all the correct fixings. Most of the nuts and bolts that came off were really bad and getting UNFand UNC over here now is hard work. Thats without looking for countersunk domed top etc etc.

It did have both the small mortar bracket and the large one fitted, so maybe it has had one or other retro fitted at some stage.

No idea sorry what the four holes on the side are for but will try to find out.

More pictures as things progress.

Andrew

Andrew,
BSF / BSW is still available, I was surprised how easy it was, a number of industrial suppliers in the West Midlands who will sell you boxes full, 100's per box. BSF is a little more hit and miss but for the T16, UNC and UNF will be a synch! For odd one offs try Spalding Fasteners nr me (ebay), for boxes full try: Willenhall Fasteners Ltd, they only deal company to company not to the public so I purchased them through a family company. You will want to order HEX heads and if you want then A2 stainless will be available through specialist stainless fastener suppliers, try Apex Stainless nr Wolverhampton, again company only transactions.

For bolts and machine screws, I used a mail-order Internet company here in the USA called Bolt Depot. Cost a bunch as there are so many large bolts in the T-16 but figured it was better to replace everything since it was a complete ground up restoration. I used stainless in most places. Link below is their company:

http://www.boltdepot.com/hex-bolts.aspx

For brass fittings needed with the two oil coolers and all the various lines, I used another Internet company linked below. Austin is a big city but a lot of this type of stuff just isn't readily available anywhere that you can walk into. So placing an on-line order was a lot easier overall, even though you need to think things out in advance for the project.

http://fittingsandadapters.com/

well thanks once again Guys. I will take a look at both of these websites. I dont think I will stretch to Stainless but usually use copper grease on threads where they will need to be undone again in the course of ordinary service work. It is a pain , as you say David , even in a large City its frustrating to try and find the bolts one needs easily and when you want them! I am hoping that I may find a supplier at War and Peace in 2 weeks time, and try and buy a bucket load of bolts. Currently struggling with the countersunk slot head that hold all the hull fixings on. I have a box of these, some are raised domes which were for a Half track but they are the size up ! Pain. Ah well, need to spend some time on the net sorting this lot out.

Careful with the net, when it comes to nuts and bolts, the phone and a company headed note paper gets you a lot more for your money than companies targeting the 'hobby market'.

I call this my Spring Alpine Camoflage. One can increase the ammount of brown in the mix and reduce the white depending on how far into Spring season it is. :bang:

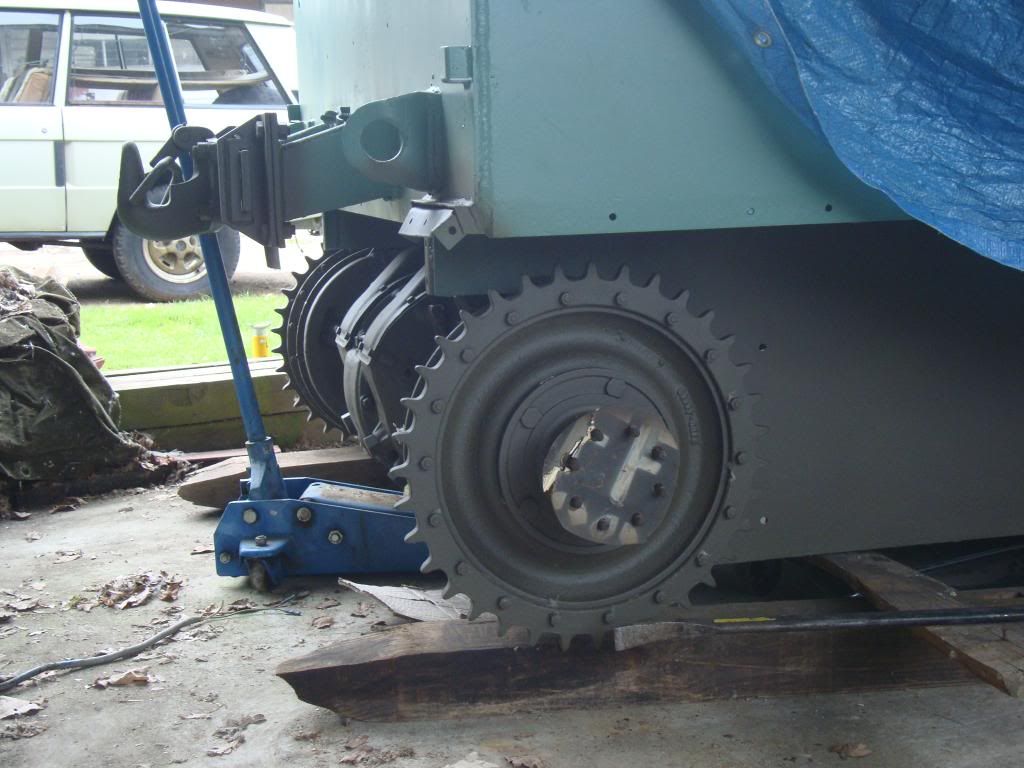

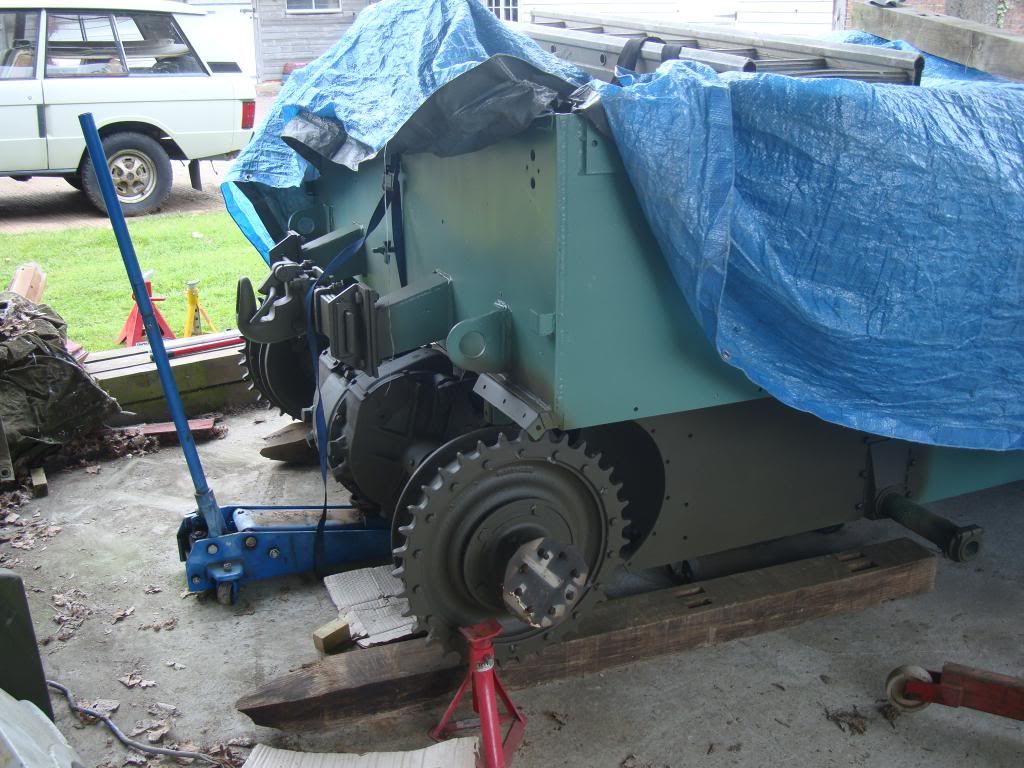

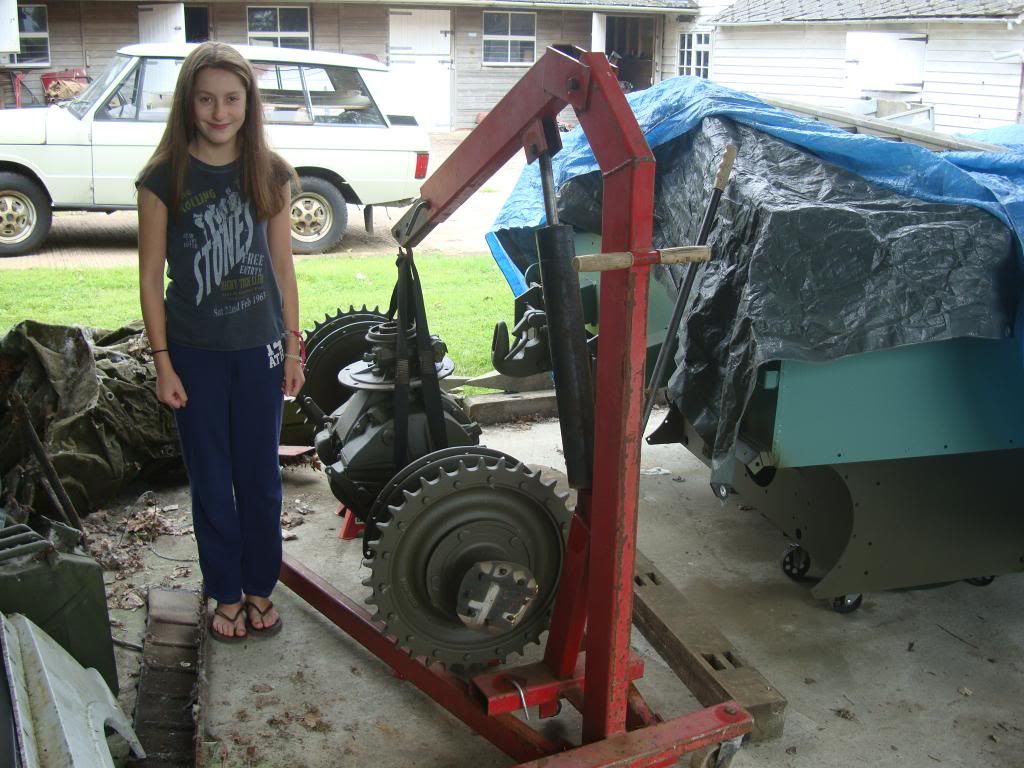

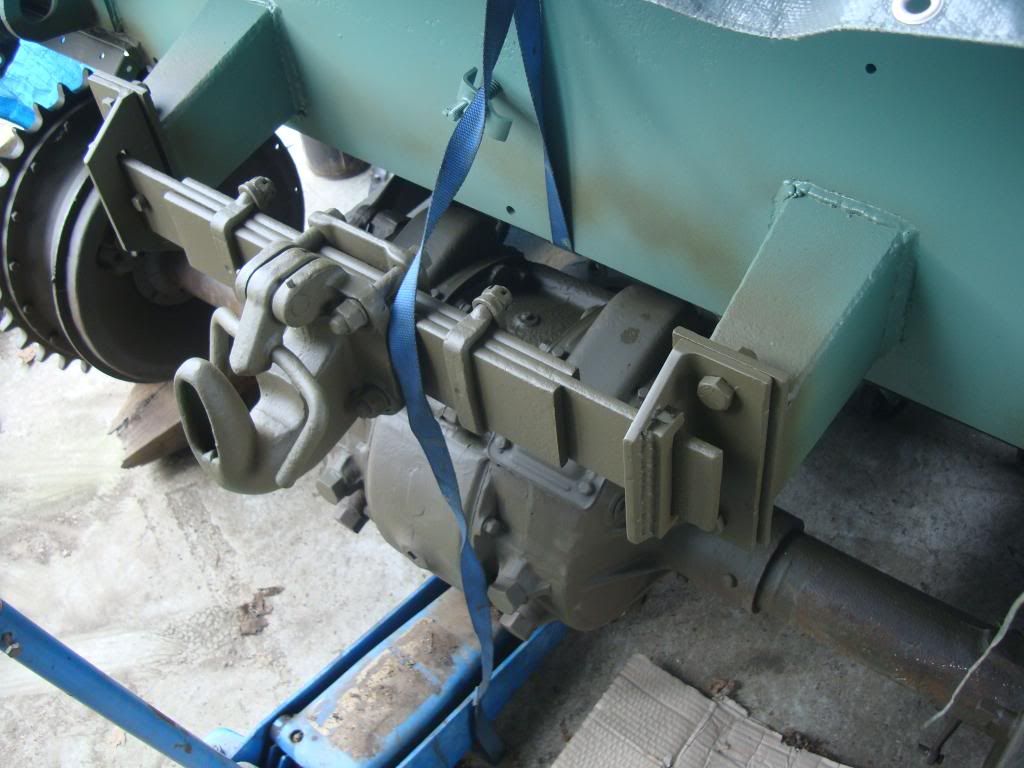

Well I have to say working on the T16 just got a whole lot better and more enjoyable. Not only have I now turned onto the back nine but I dont have any more, as yet, dirty oilly jobs to do. Reassembly is a joy. So far I have dropped in both rear bogie supports and today it was the turn of the rear axle. I had been fearing this job just because the axle weighs a tonne and is a pig to balance as it wants to nose over all the time. However, I seem to have mastered it with great care, a mixture of jacks and axle stands it is now 90% back in the vehicle. All that remains is to apply sealant to the rear flange and fit the shims and the bolts. I think that will be fairly straight forward. Looking at the gap between the axle fixing flange on the hubs and the hull the gap looks rather bigger than the shims, but I assume the hull plates pull in slightly as tightened. At least I dont think the axle has shrunk in the last 12 months. The aim is to get the T16 on its road wheels as soon as possible and then on its tracks thereafter. At least then I can manouvre it around . Still having real trouble getting Nordian Services to respond to my e mails regarding the main bearings. If anyone has some NOS standard mains for a T16 mercury engine then please let me know. Photo of my little helper included!

http://i714.photobucket.com/albums/w...r/DSC06595.jpg

http://i714.photobucket.com/albums/w...r/DSC06597.jpg

http://i714.photobucket.com/albums/w...r/DSC06599.jpg






this is a link to my photo album detailing the restoration so far http://s714.photobucket.com/albums/w...sal%20Carrier/

http://i714.photobucket.com/albums/w...r/DSC06600.jpg

http://i714.photobucket.com/albums/w...r/DSC06601.jpg

Andrew


Looking good . Your on the down hill run now. (btw.I think your little helper could do with an upgrade on her safety boots) I take it that you have that front guard thing sorted out.
Lynn

thanks Lynn. I wondered whether anyone would comment on the boots and safety gear. To be fair, she only brought me the cup of tea and I said I would put her on my blog! Naturally I wouldnt have the kids around that sort of work, it would hurt big style if it fell on you! By the way Lynn have sent you a pm

do it..... slave labour ! my boys foolishly showed an interest one day... they were scrubbing rust from metal for the rest of the day :)

Indeed Richard, any help is good help as far as I cam concerned. I have a stepladder to get in and out of the T16 but inevitably I have always left something in or out of the blessed thing and have to get in or out to get it. My knees are taking some hammer so little helpers are very useful.

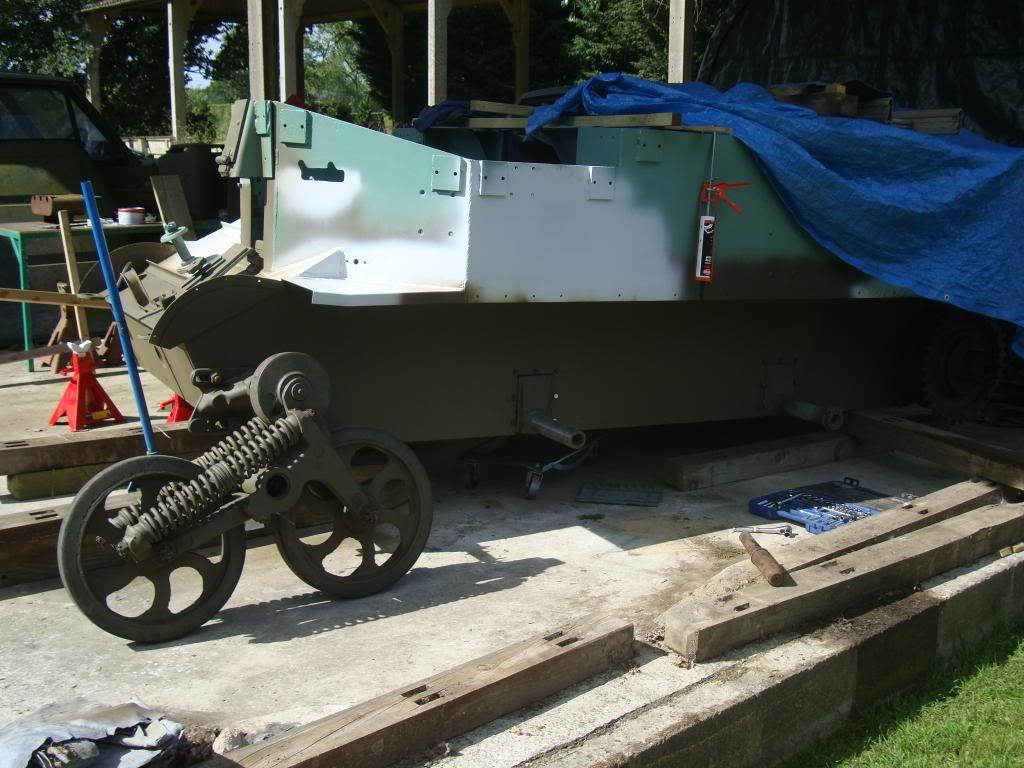

Axle now bolted in, took a little more lining up than I thought but the old advice from my father of getting all the fixings in before tightening any up worked a treat.

http://i714.photobucket.com/albums/w...r/DSC06612.jpg

http://i714.photobucket.com/albums/w...r/DSC06619.jpg

I wrote a long and detailed account of the days work and then accidently lost it!

Cant bring myself to do it again so here are the photos anway!

http://i714.photobucket.com/albums/w...r/DSC06613.jpg

there's nothing worse than spending half an hour doing a post then the bloody thing gets lost somewhere and you have to start again, been there many times. great thread by the way.

Thanks for the kind comments Rick.

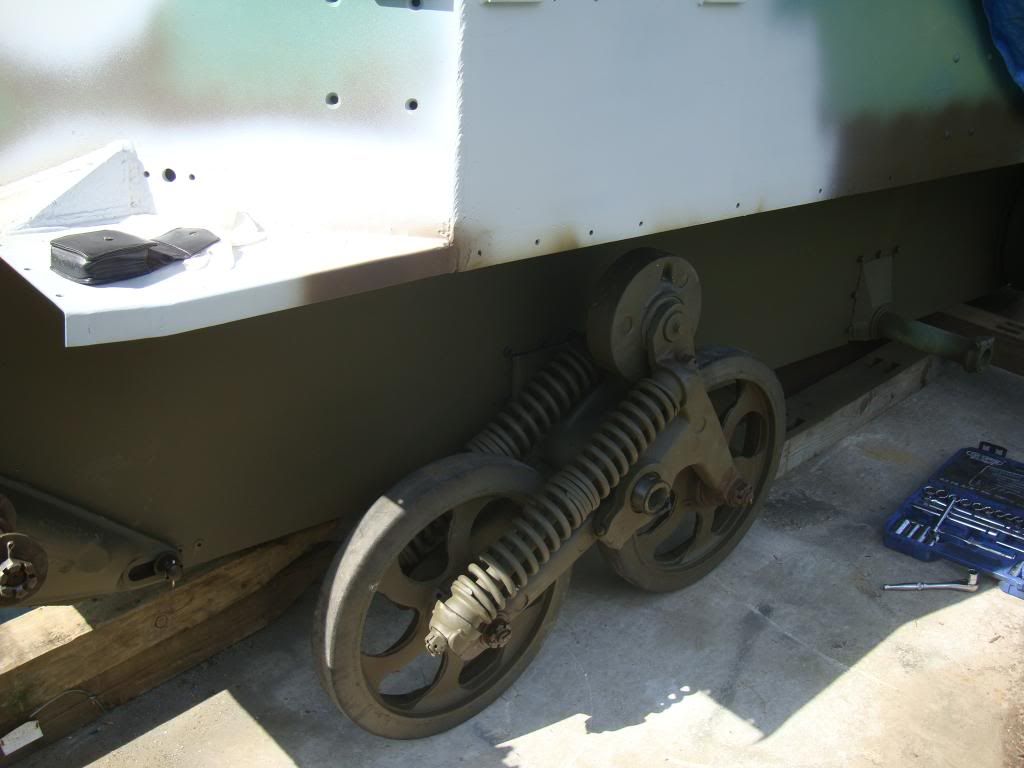

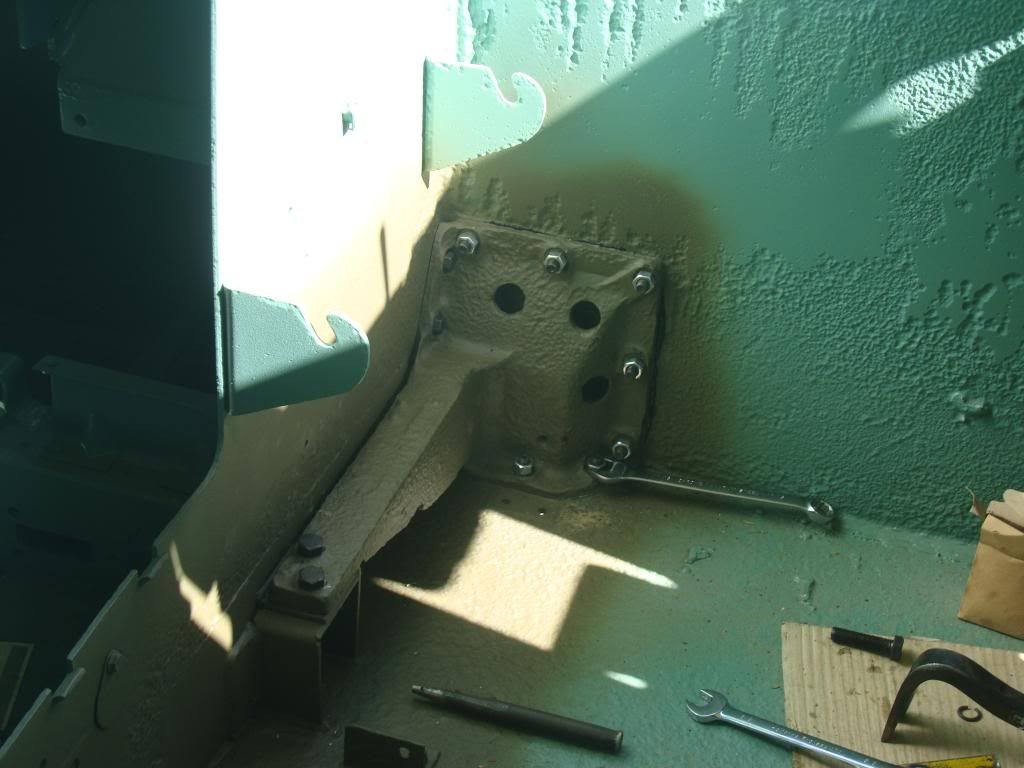

indeed it is most frustrating after all that typing! Anyway, the short version was that I managed to get the front bogie bracket bolted into the hull, but it was more tricky than the rear. There are quite a few, approx 16 or 17 bolts and screws to line to get it fixed in ok. There is quite a bit of flex thankfully for this task in both the sponson side and the bulkhead which enables one to line up the inner fixings near the centre of the vehicle. The TM states that mating sufaces should be sealed to enable deep fording, so I applied a straight forward black silicone which I am able to trim off when its set.

I fitted new rope seal around the rear of the suspension unit and front where it seals up against the inner edge of the bogie bracket and the outer thrust washer. I imagine this is a two way seal, one to stop water and grit ingress the other is to retain as much as possible of the grease held within the suspension unit. As I am sure many of you will have already discovered, lifting these units onto the bracket is really a two man job, but somehow I managed now I have a weeks recuperation on holiday and plenty of mental planning for the next stages of the restoration. Eventually got hold of Nordian Services and I should be in receipt of some NOS main bearings awaiting my return. More soon.

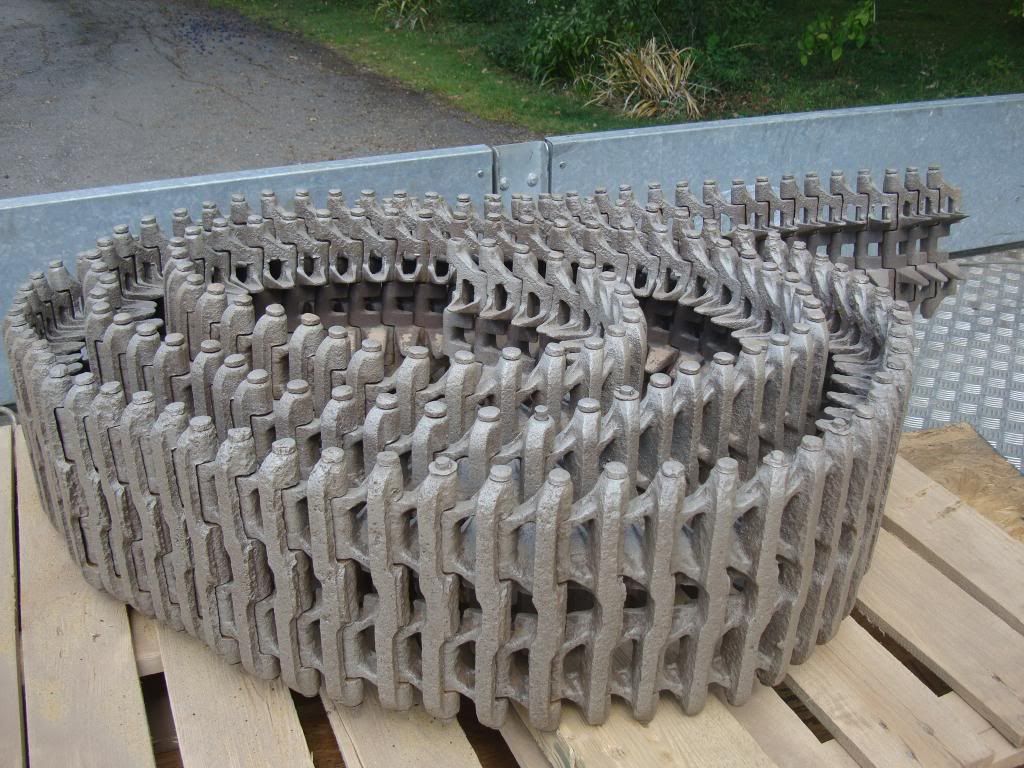

Well onwards and upwards. Picked up the Tracks from the blasters today, and pretty pleased with them, although some of the pins look like they have seen their best days. Do these pins break? I mean of course they break, but do they break readily? Not too sure I am ready to break a track driving around the country roads of Kent. Also need a lot of washers, as most of mine , where fitted seem to have disintegrated from the blasting. Are they special in any way, I doubt it.

http://i714.photobucket.com/albums/w...r/DSC06982.jpg

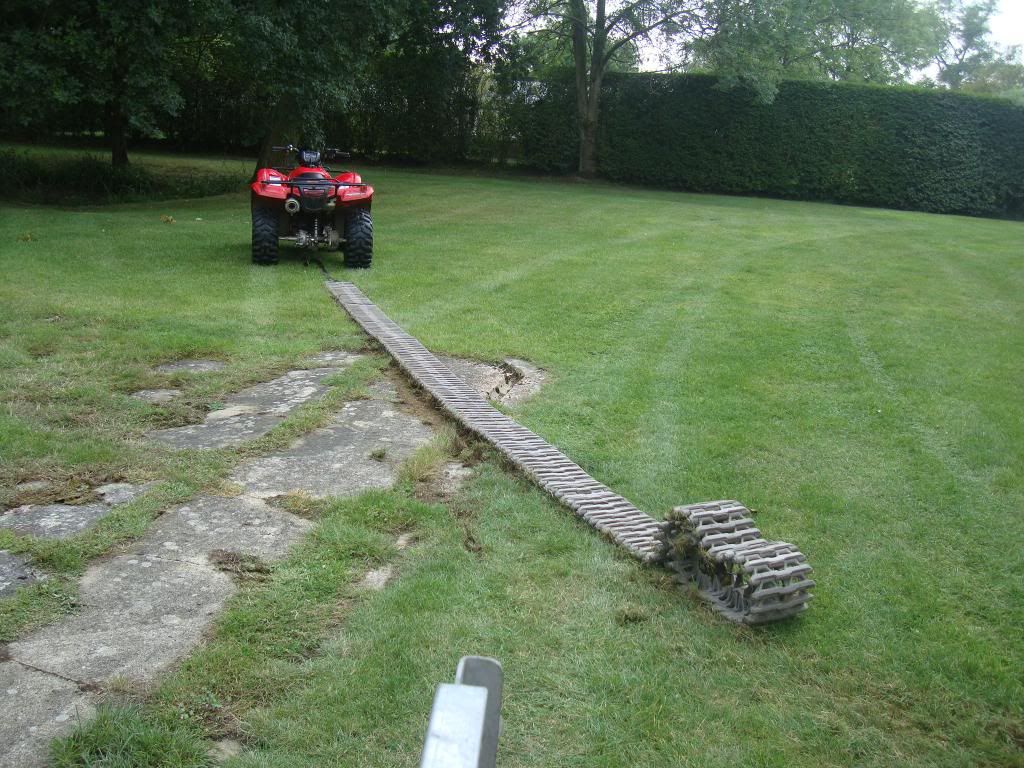

Found the ideal tool for handling the tracks, in fact I took them for a little work out on the field to try and free them up a bit more. Mostly they are free but one or two sections are stuck and will no doubt make it tricky to fit the tracks.

http://i714.photobucket.com/albums/w...r/DSC06985.jpg

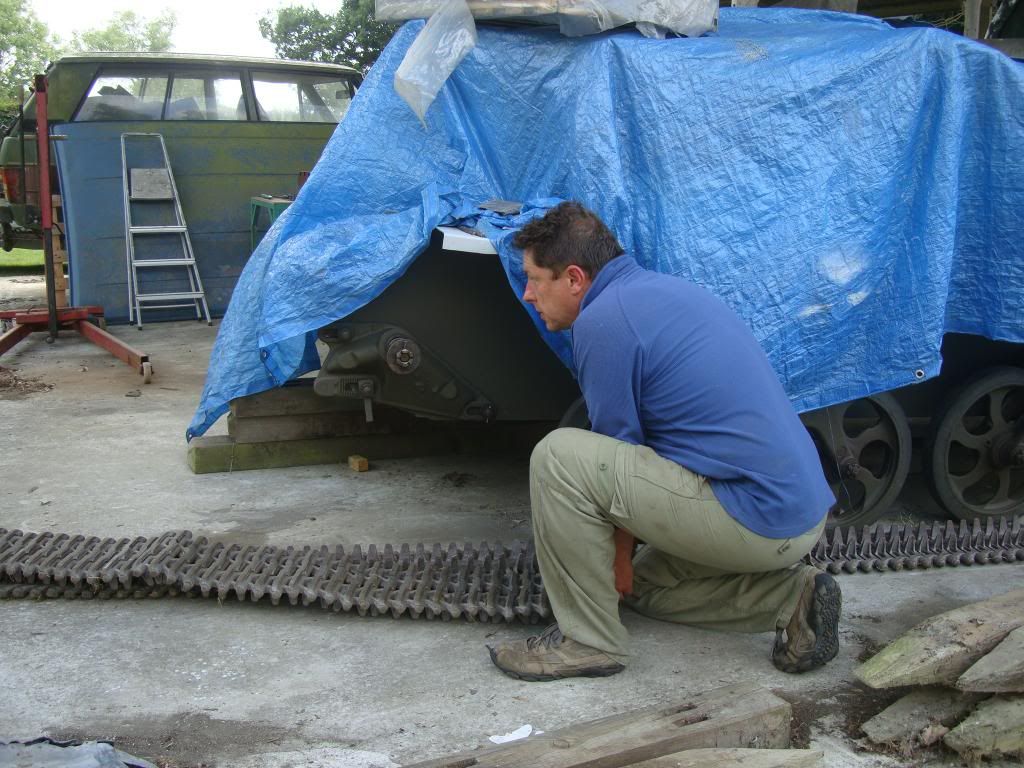

anyway, the tracks are in place ready to be fitted when I finally get the front idler wheels on. I just need to put the bearings back in and get them on. I did want to pull the T16 off the concrete barn where it is, but as the engine is still not finished if I pulled her off I may not get her back up the brick wall and thats the place I want it to stay. So I will labour on with fitting the tracks where she lies.

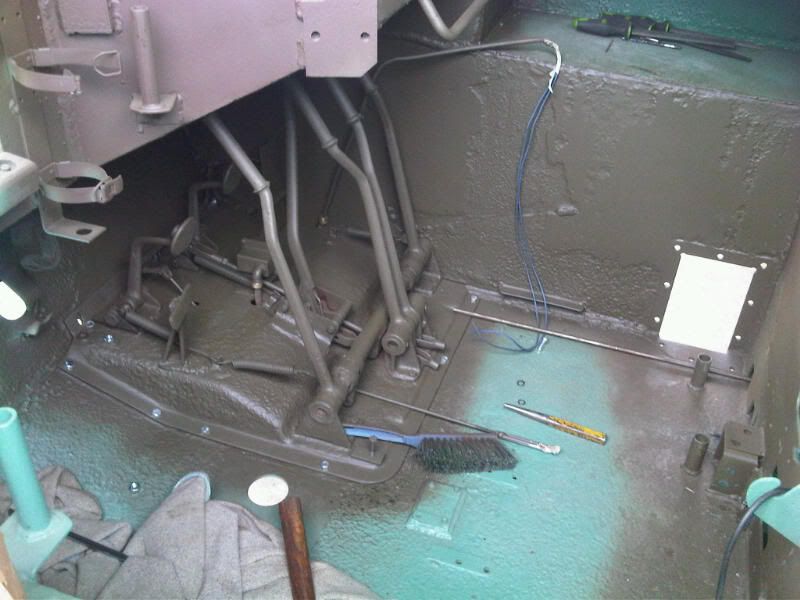

Got all the control levers back in and fitted the plate, just making up new control rods and finishing a few little brackets that need welding in to locate return springs etc.

As for the engine, I started to build it up yesterday but ran into trouble with the rope seals for the rear main bearing. It was a complete nightmare to cut as it came over length and then frayed badly. I have sent off for some more and also decided to invest in a new rubber seal for the front of the crankshaft/pulley. Tell me that was a good idea guys?

http://i714.photobucket.com/albums/w...r/DSC06987.jpg

real shame about the corrosion in the sponson sides, but I guess its 65 years old and spend a long time on its side in a scrapyard, so its to be expected. I decided against filling it as I felt sure it would look false and crack out in due course. But hey, when the seats in and if I could get some orginal blanking plates that fit over most of this corrosion it wont look to bad.

http://i714.photobucket.com/albums/w...10818-1525.jpg

Keep the pics coming please. Its quite good to see the pitted rust look,tells the story of age and restoration. 60 plus year old MV's with smooth panels and shiny paint jobs, although fantastic restorations in their own right just don't seem to have that, done the hard yards I survived look. Anyway keep up the good work, enjoy your posts.

thanks, I am glad someone is reading it, and finding it interesting. There is no rocket science here, you all do it, but its fun loading up the photos and keeping the story going. If I can escape from some chores at home, I may try to get those tracks on. We will see.

I noted, bearing in mind the tracks were very rusted and seized before, that there is a lot of lateral movement now they have been blasted. I was discussing this with my Dad last night and we concluded that there should be a steering element to the tracks, other wise they would lurch around corners. Anyway, hope I am right , otherwise they are quite worn on the pins and link!

hi andrew
we're all following your thread with interest and you seem to be cracking on at a blistering pace, at this rate you'll be driving her soon :thup2:
if you're worried about the tracks then you could remove a link and inspect the pin for wear, a normal used pin would have a stepped wear pattern of maybe 10 thou or so but this is just my guestimation. another method which is actually the official way of track wear testing is to count the links, i don't know how many links a new t16 track has but there will be a figure of so 10 or so less when the track is deemed to be worn out. you'll have to get one of the other t16 guys to give you the correct figures but you can only use that method if the tracks are original and haven't been swapped around with different sections from other vehicles (my tracks are made up from all sorts so the pin is my only guide to track wear)

all the best

rick

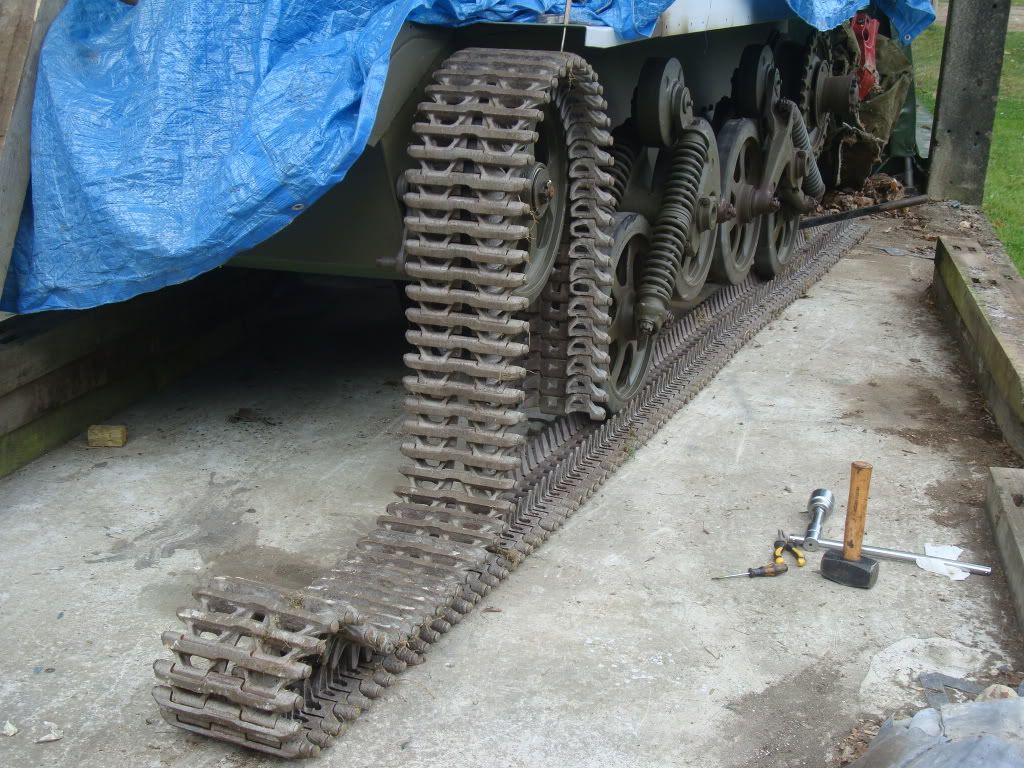

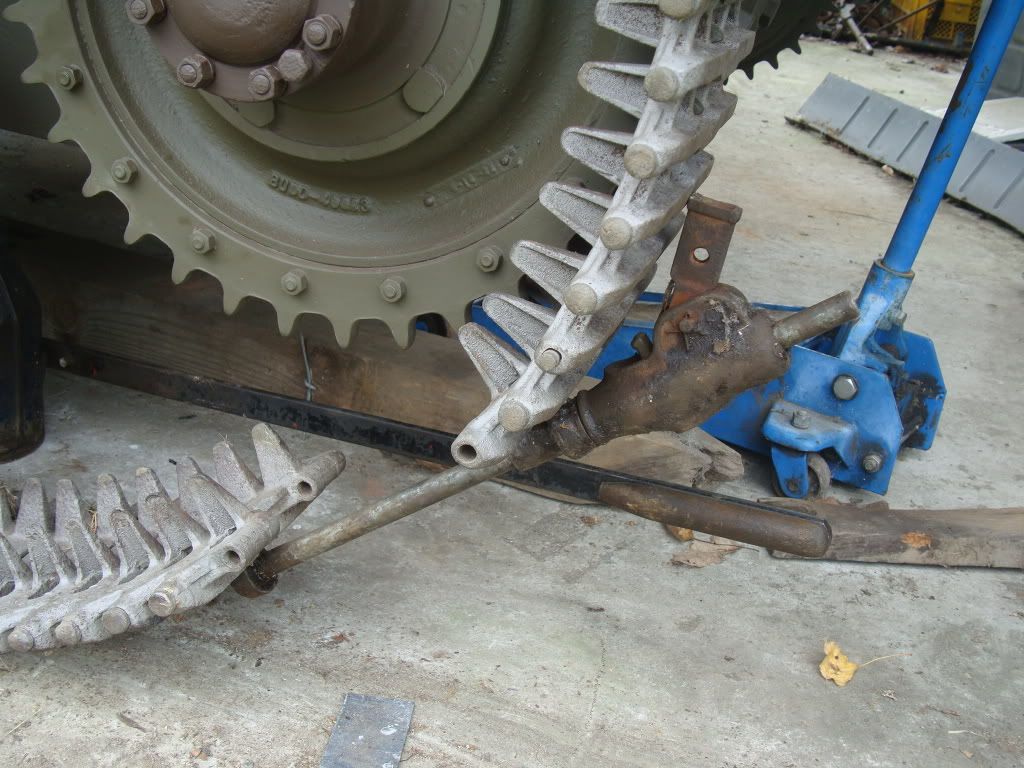

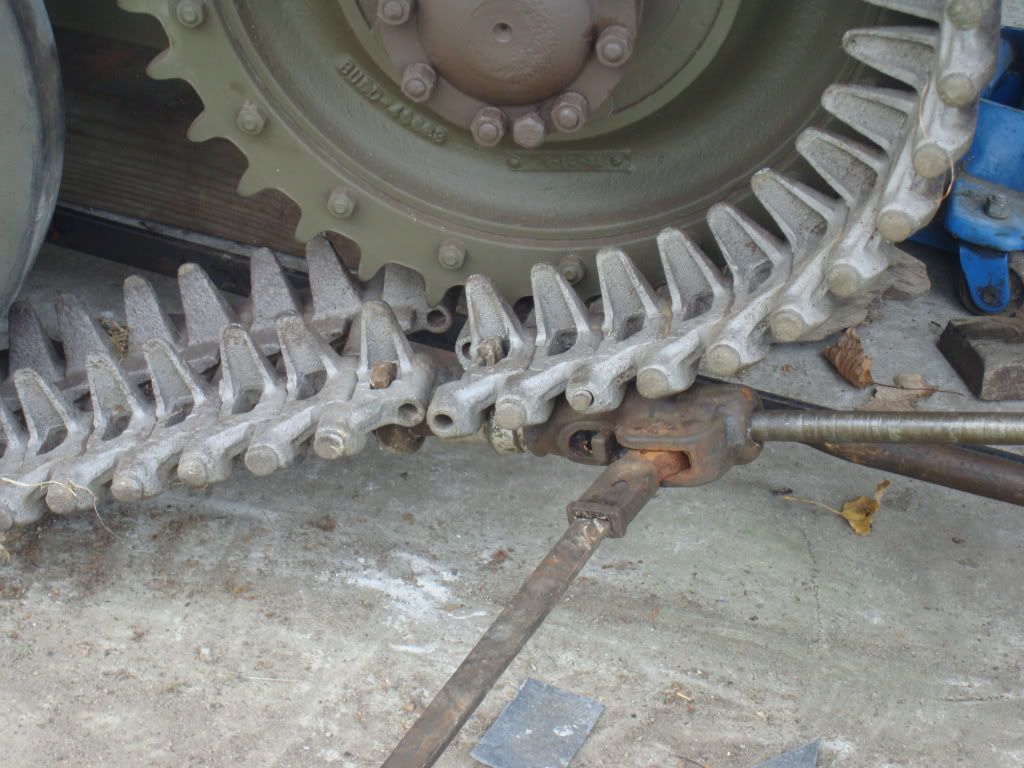

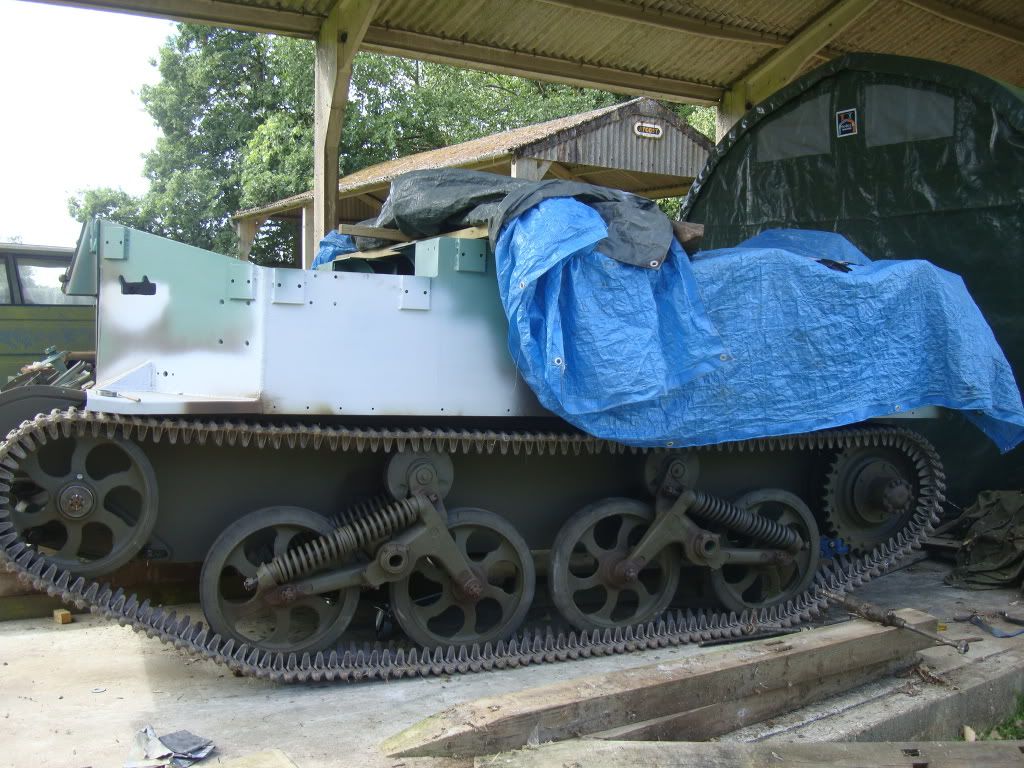

thanks for the advice on the track pin wear. I think they are pretty good to be honest. This T16 was part of a batch that apparently had done very little work, and I think the tracks reflect this. Anyway, got one of the tracks on today, pretty easy with the correct tool. Used the Pin punch to line up the holes and punched it back out with the track pin. Apart from it occurring to me that this is probably a two man job, I seem to have managed ok, except for a crooked neck. I am definitely getting too old for all this!

http://i714.photobucket.com/albums/w...t/DSC06995.jpg

http://i714.photobucket.com/albums/w...t/DSC06999.jpg

http://i714.photobucket.com/albums/w...t/DSC07000.jpg

http://i714.photobucket.com/albums/w...t/DSC07003.jpg

Fine job..


That is the finest kind of job you are doing on the carrier..The wee lassie will be able to use what you are teaching her for the rest of her life..
My two daughters did and still do do some of the maintenance on their own vehicles ..When they were in their last year of university I bought them each a used car..a Toyota and a Honda Civic..
They would do their own oil changes and my youngest daughter wanted to do EVERYTHING herself,DAD!!!
On her little '83 Honda Civic I wanted to repack the rear wheel bearings ..she wanted to help..we did the first side together and she let the jack down..jacked up the other side and did a fine job of repacking the bearing and putting it all back together..
by herself..thank you..
She is still like that today..
Last year I gave her a new cordless drill and a whack of attachments and this summer I went through my tool boxes and took her down a bunch of new tools that I have no long a use for(Retired Refrigeration mechanic/gas fitter)and my 4 year old grandson immediately latched on to the telescoping mechanics mirror I brought down..
It is his favourite toy..
So you can never start them too young..Keep up the great work dad...

:drunk::remember :support :salute:

Man that looks good with the tracks back on! :D well worth blasting the track prior to fitting.

Glad you like the tracks, I must say I am pleased with them too. The blaster was desperate to paint them, for two reasons it turned out. First he could not believe that they would look right in bare metal, and then he admitted to me that he had to do a lot more work if they were not going to be covered with black paint afterwards. My father was adamant that they were not painted when he was building them in the early 40s and they certainly look better like this in my opinion . Of course they will tarnish soon and turn back to rust but as long as I can get the old girl running under her own steam it will burnish them up again.

Good story Alex. My girls are taking it all in. They have not yet got to the stage of doing any manual work, but they sit and watch and help with tea and fetching spanners. My youngest did hold a spanner the other side of the hull whilst I tightened a bracket inside, so I suppose we are moving in the right direction. Gee whizz I am stiff today after manhandling that track over the rear drive hub! Since I have put the new seal around the rear drum it makes it very stiff to rotate, hence I had to manuallly lift the track one tooth at a time until I got it in roughly the right position to use the track jack. Now, shall I do the other track today, or can I think of a nice easy job, like cutting some stencils!

Fine Work.


Andrew,
I must say I had no real iterest in T16 Carriers until reading your thread, You are doing a thourgh job there. The track looks good with very little wear on the pads. If the track is worn on the pins or pin holes what you will find is they will not sit square on the sprockets/front idlers and you will get wheel scrub on the inner side of the rear trailing wheel, The sprockets will burr over in time too, but from what I can see your track looks good. I was going to get some track shot blasted but thought it might suffer in getting grit trapped in the pins?. Keep posting the large scale pictures.

Kevin.

must admit that was what stopped me doing mine... but suppose if you take the time to clear it all out of the lugs etc it should be ok.

Tis looking good though Andrew... i would not worry about the pitting on the lower hull......its honest...it is what it is (Original !)

interesting views on the sand in the tracks. I reconciled this with the simple view that they would see a lot more sand in the desert. There is no residual sand in the tracks and it is not a risk to the working of the track. Basically, I would not leave the tracks as they were as they were jammed up with rust and muck. sandblast every time.

Andrew


It all looks good to me. The constructive comment from me, is that I think the track jack is fitted in the center of the track.
I have seen the front crank seal advertised. Let us know what you think about them.
I'm enjoying your posts and learning about how the T16 is different from other carriers.

HI Lynn, indeed the track jack SHOULD be fitted in the middle of the track or else it pulls one side in more than the other. The reason is that I guessed where the join would be by placing the track on the floor in a position and then pulled the rest over the top and rear drive sprocket. However the join was too close to the drive teeth and I could not get the jack in securely to tried it on the edge and hey presto it worked, thereby saving me from more heavy pulling! Well spotted though.

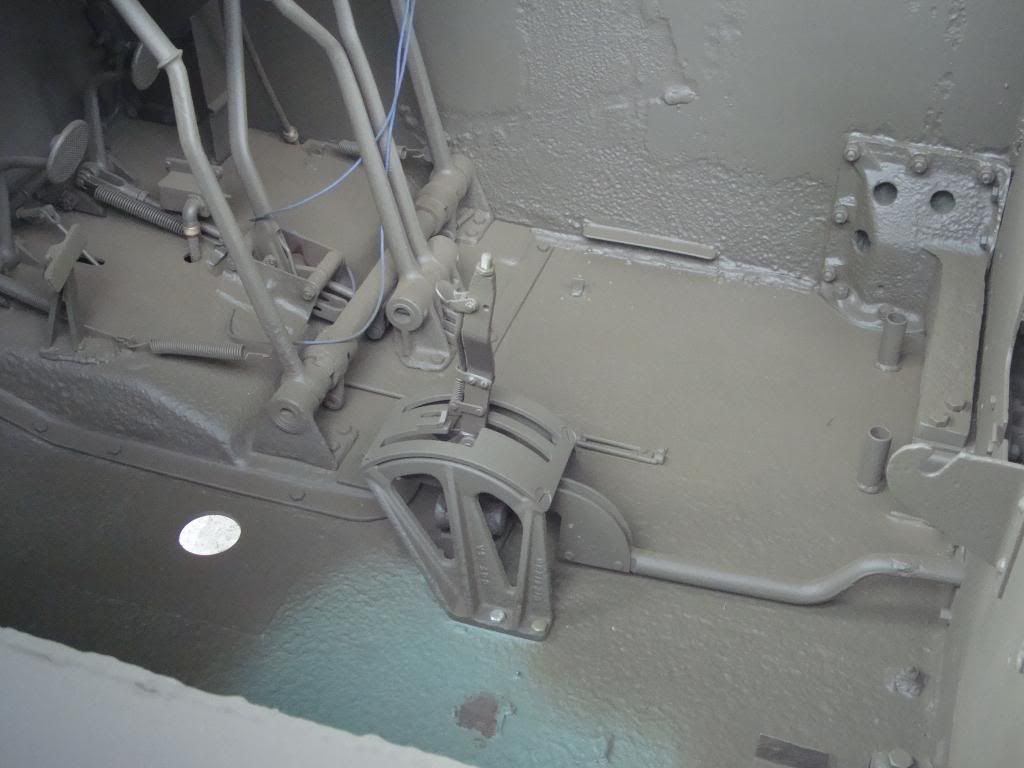

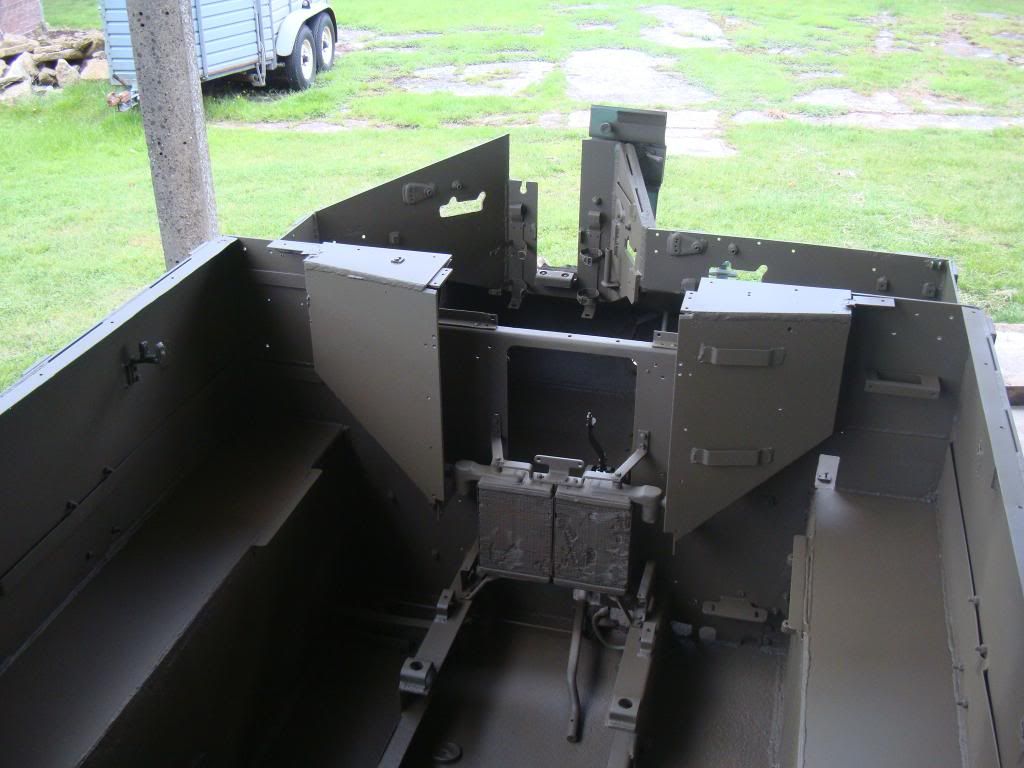

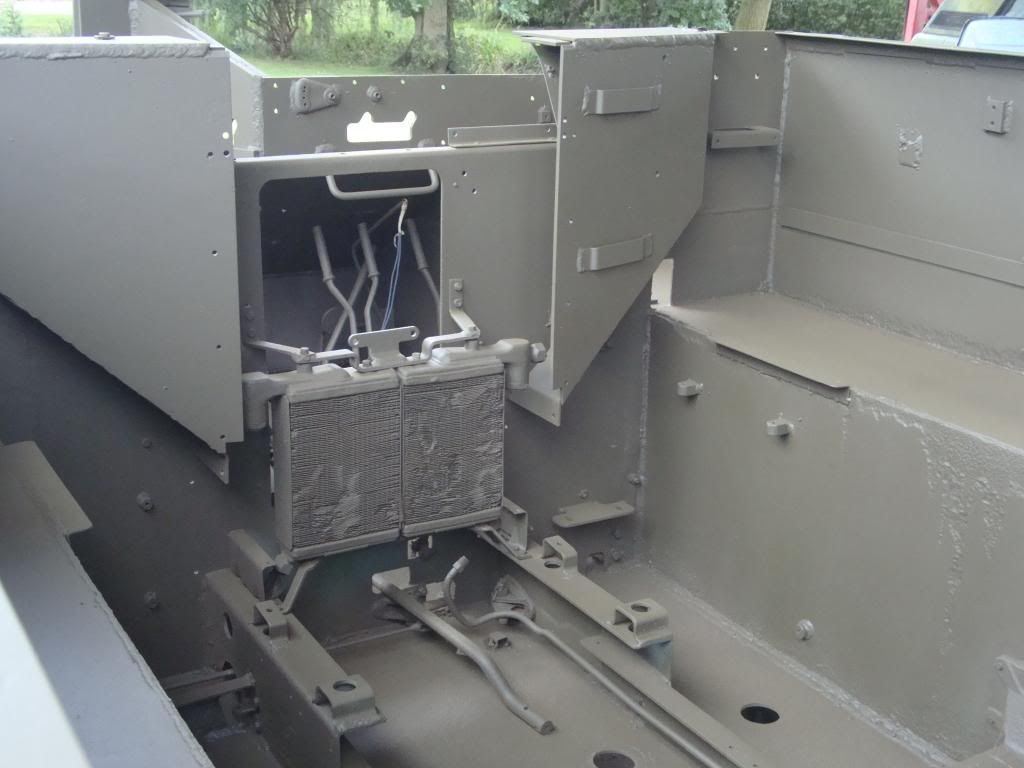

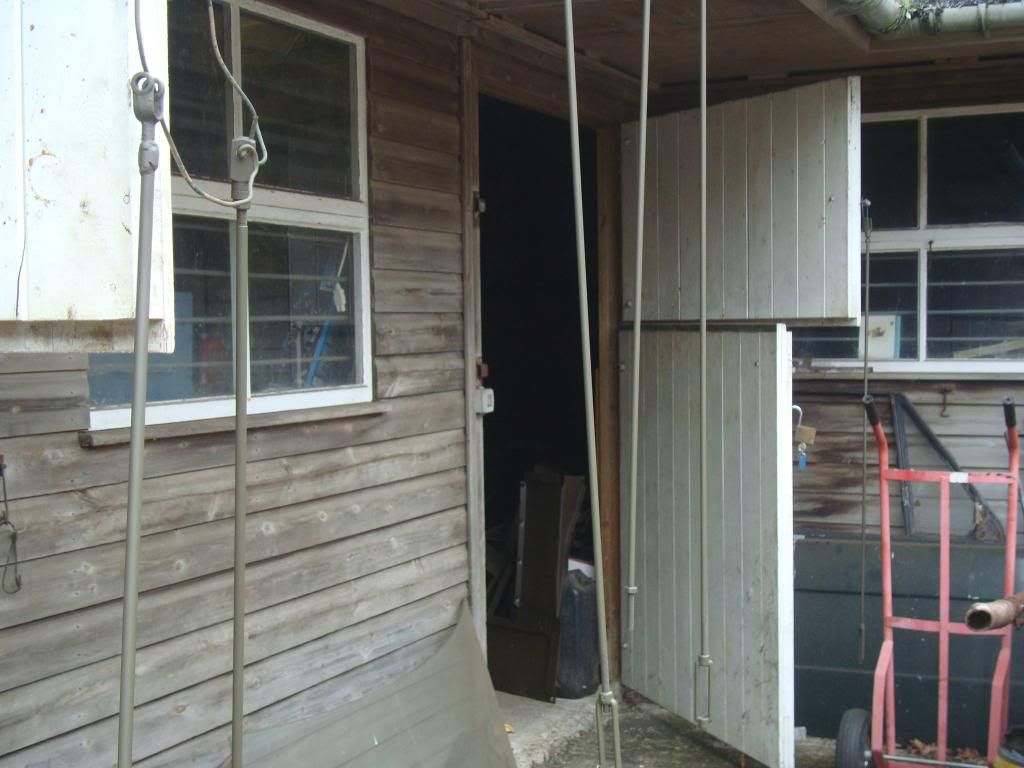

A few more photos to update the thread. Have just made all new control rods which I am quite pleased about. They are 3/8 UNF but I could not get any turnbuckles in UNF. However, I did find metric ones in M10 which is exactly the correct size for threading 3/8 bar. So I have 3/8 UNF ends to each rod with NF clevis fork ends, and then left and right hand thread metric M10 in the middle for the turnbuckles. If you follow that you are doing better than me! Anyway, all coming back together ok, no real problems but something that has been in the back of my mind and I have been avoiding is now coming to the fore. I have to make some new oil cooler pipes for both the engine and diff coolers. These are 1/2 in steel and have double flared ends. The curves are intricate and sharp. I cannot see that I can bend 1/2 in copper nickel and even if I do I have not got a man enough flaring tool for 1/2 in. I priced up the latest Sykes Pickavant tool but its over £250 just to make up some pipes as a one off. Ummmh. Anyone know whether trucks use steel air piping at this size? My thought being that if they do, some friendly fitter may be able to make my pipes for me? Anyway, hope you enjoy the photos.

http://i714.photobucket.com/albums/w...r/DSC07030.jpg

http://i714.photobucket.com/albums/w...r/DSC07032.jpg

http://i714.photobucket.com/albums/w...r/DSC07033.jpg

the light green patch is where I was standing when i was spraying!

http://i714.photobucket.com/albums/w...r/DSC07037.jpg

Hi Andrew,

You could try Pirtek, near Ashford Market, they are hydraulic pipe specialists, not just hoses.

I have a Sykes flare set, but not sure if it goes to 1/2", will check tomorrow.

regards, Richard

hi Richard. you ok? thanks for the idea on Pirtek. I have to say that I have spoken to them a few times , mainly regarding the special threads that the t16 has, and they have not been able to help. In fact I did call them today and ask whether they could supply 1/2 pipe but they couldnt. That said, I have not asked them if they could make the pipes up so will call tomorrow. However, I am very interested to hear whether your Sykes tool goes to 1/2. Please let me know. By the way, dropped off the magdyno at PB today. Am i going to beat you back onto the road?
